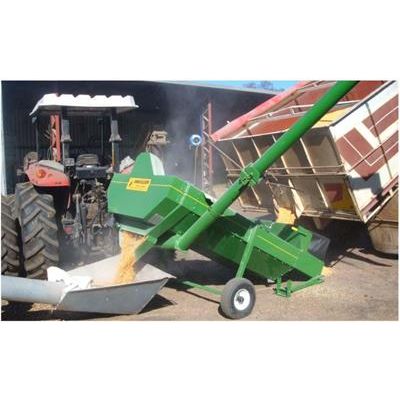

Kwik Kleen - Model 572 - Grain System

A large range of screen sizes are available to suit your grain requirements.

Round Hole:

• 2.0mm (5/64): Flax Conola
• 2.35mm (6/64): Oats
• 2.70mm (7/64): Small Wheat
• 3.18mm (8/64): Wheat, Barley, Rice
• 3.55mm (9/64): Durum, Large Wheat, sizing Wheat & Soyabeans
• 3.95mm (10/64): Soyabeans, Oil Sunflowers, Chickpeas, Lupins, Peas
• 4.75mm (12/64): Corn & Sizing Oil Sunflowers
• 5.55mm (14/64): Corn, Soyabeans & Confectionary Sunflowers
• 6.35mm (16/64): Corn, Confectionary Sunflowers
• 7.95mm (20/64): Sizing Confectionary Sunflowers

Slotted Whole: (slotted holes are 20mm wide)

• 1.00mm (2.5/64): Canola
• 2.00mm (5/64): Canola
• 2.35mm (6/64): Sizing Barley
• 2.55mm (6.5/64): Sizing Barley
• 2.70mm (7/64): Sizing Barley
• 3.17mm (6/64): Corn & Beans
• 3.55mm (9/64): Corn, Beans, Chickpeas & Peas
• 3.95mm (9/64): Corn, Beans, Chickpeas & Peas
• 4.75mm (12/64): Corn, Beans, Chickpeas & Peas

• Run machine at 520-550 revs for wheat & barley.
• This is measured by pointing RPM metre at bottom of auger with tab on it.
• Black lever near hydraulic hoses is to control hydraulic flow, to set speed.
• Ensure you slow machine down prior to turning off, as you should not restart machine on full on full revs.
• Yellow handle is to control flow of grain into machine to ensure even flow to all tubes.
• The steeper you run the machine the more screenings etc the machine will take out.
• Ensure to stop grain and allow cleaner to empty out at finish of each run. Makes it much easier to restart machine or shift.
• If changing screens, ensure to refit with seam facing clockwise.
• Clean down screens and machine at finish of hire, to the standard it was provided.
• There are 2 slides at bottom of machine to was machine out.

• Cleans up to 70 tonne/hour
• Weight of machine: 430kg (approx)
• Length: 2.7m (9ft)
• Width: 1.45m (4ft 10″)
