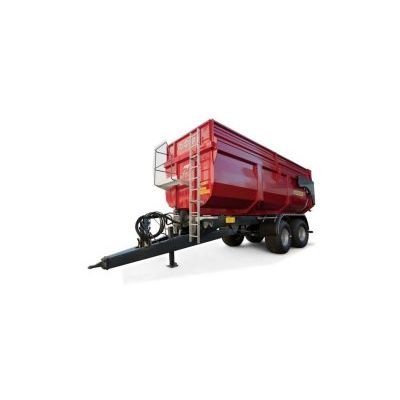

ZASlaw - Model D-764-21 1R -Half Pipe Agricultural Trailers
Loadingcapacity: 15500kg. GrossVehicleWeight: 21000kg. Volume: 24/33m3. Numberofaxles: 2. Box-bodylength: 7210mm. Box-bodywidth: 2256mm. Heightwithout/withtopside: 3120/3727mm. Length: 9815mm. Width: 2550mm. Sidesheight: 1570+600mm.
Tyresize: 550/65R22.5`. Wheeltrack: 2000mm. Couplingheightfromtheground:390-890mm. Max.speed: 40km/h
Most popular related searches
- single- or double-wire pneumatic braking system with manual regulation of braking force
- drum brakes
- hand brake
- parking brake - spring cylinders
- 2 axles, mechanical suspension
- tyres 550/65 R22,5" (new tyres, not regenerated)
- steel rims
- cylinder absorbing shocks of the drawbar
- chute in the rear dropside
- sides height 1570 mm
- hydraulically lifted rear flap
- steel sheet thickness: floor (6mm), sides (4mm)
- frame shot-blasted and painted with a primer ans top-coat paint RAL 7021
- box-body paiting in RAL 3004 or 6002
- hydraulic cylinder with oil cut-off valve at maximum deflection deflection of the loading body to the back at 50°, to the sides at 47
- 12V electric installation
- drawbar eye fi 40
- external aluminium ladder
- triangle for slow-running vehicles
- toolbox with equipment (wheel wrenches, warning triangle)
- foldable rear bumper
- lines protecting the box-body
- steps inside box-body
- mudguard behind each wheel
- water tank
- wheel wedges - 2 pcs.
EQUIPMENT WITH EXTRA CHARGE:
- tarpaulin with frame
- spare wheel
- spare wheel winch
- rotary rear hitch
- automatic rear hitch
- automatic rear hitch V.Orlandi
- ball coupling
- axles and suspension up to 60km/h
- self-steering axle
- wheels 600/65 R23
- wheels 550/60 R22,5
- hydraulic landing leg
- working platform on the front wall
- box-body painting in non-standard colour
- rear halogens
- galvanized frame
- additional top sides 500 mm
