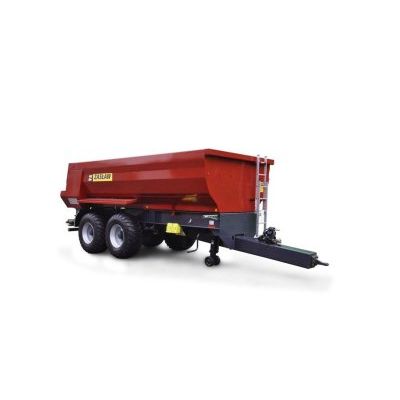

ZASlawModel D-764-21 1B -Half Pipe Agricultural Trailers

SHARE

Loading capacity: 15 500 kg. Gross Vehicle Weight: 21 000 kg,. Volume: 15 m3. Number of axles: 2. Box-body length: 5 500 mm. Box-body width: 2 200 mm. Height:  2 580 mm. Length:  8 060 mm. Width:  2 550 mm. Sides height: 1 200 mm. Platform height from the ground:1 350 mm. Tyre size: 385 /65 R22.5`. Wheel track: 2 000 mm. Max. speed:  40 km/h

Most popular related searches
  • single- or double-wire pneumatic braking system with manual regulation of braking force
  • drum brakes
  • hand brake
  • parking brake - spring cylinders
  • 2 axles, mechanical suspension
  • tyres 385/65 R22,5" or 550/65 R22,5" (new tyres, not regenerated)
  • steel rims
  • sides height 1200 mm
  • mechanically lifted rear flap
  • steel sheet thickness: floor (hard wearing HARDOX 6mm), sides (4mm)
  • frame shot-blasted and painted with a primer ans top-coat paint RAL 7021
  • box-body paiting in RAL 3004 or 6002
  • hydraulic cylinder with oil cut-off valve at maximum deflection deflection of the loading body to the back at 50°, to the sides at 47
  • 12V electric installation
  • drawbar eye fi 40
  • external aluminium ladder
  • triangle for slow-running vehicles
  • toolbox with equipment (wheel wrenches, warning triangle)
  • foldable rear bumper
  • lines protecting the box-body
  • steps inside box-body
  • wheel wedges - 2 pcs.

EQUIPMENT WITH EXTRA CHARGE:

  • tarpaulin with frame
  • spare wheel
  • retreaded spare wheel
  • spare wheel winch
  • rotary rear hitch
  • automatic rear hitch
  • working platform on the front wall
  • box-body painting in non-standard colour
  • connection sockets for a second trailer
