Sicma - Model TLX 100 -Harvester for olives, nuts (walnuts, almonds, pistachio, etc.), cherries, plums with trunk shaker
FromSICMA S.r.l.

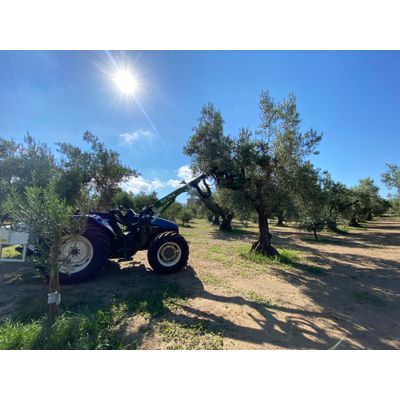

It is the double telescopic arm frontally mounted on the tractor. The TLX 100 is coupled to the tractor by a double and reinforced bracket, wrapping the chassis of the drive unit. Provided with an independent hydraulic circuit (with a rear oil tank), it is activated by the tractor PTO of at least 80 HP. The harvesting kit guarantees the best visual to the operator who tightens frontally the trunk or branches, up to 5 m in height. The double arm is strong and reliable, suitable for both young and centuries-old trees. The TLX 100 cannot be coupled with the reverse umbrella. Solid, stable and effective, the TLX 100 is the specialized double telescopic arm for the harvesting of large-size trees.
Most popular related searches
harvesting system
tractor PTO
trunk shaker
nut harvesting system
tractor
tractor cabin
olive harvesting system
rearing tank
pistachio
plum
- HOOKING & ACTUATION: Chassis in sheets of 20 mm. Cardan power shaft (PTO 540)
- TELESCOPIC ARM: Single extension of 1.000 mm
- VIBRATING HEAD: Overturning, New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds
- MAX PLIER OPENING: 55 cm
- CONTROLS: Hydraulic distributor with 5 levers and electric switch
- HYDRAULIC CIRCUIT: Closed hydraulic circuit composed by vibration pump, services pump and electrohydraulic valves. Independent hydraulic oil tank
- TOTAL LENGTH: 3.800 mm (centerwheel-jaw extremity with retracted arm)
- MAX HEIGHT: 5.100 mm (with totally extended arm) or 3.350 mm with horizontal head
- TOTAL WEIGHT: 2.000 kg (full oil circuit)
- EXTENSION TELESCOPIC ARM: 1.000 mm
- Electronic Joystick (mandatory for tractors with cabin)
- Electro-hydraulic joystick
- Frontal hydraulic stabilizers
- Only chassis for loader shovels
