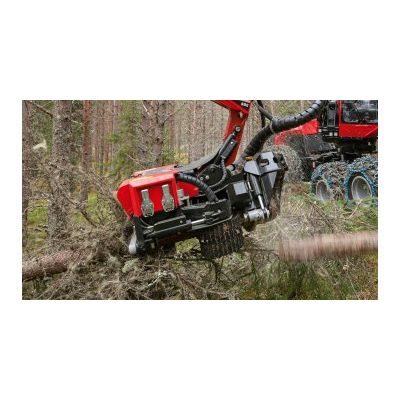

Komatsu - Model S82 - Harvester Heads
The light but strong harvester head. Nimble and light yet compact and strong – and with unbeatably high capacity. This is the combination that characterizes the two-wheel drive Komatsu S82 head. This is what makes it highly effective for thinning dense, challenging stands.
Dimensions:
Width, max: 1 185 mm (46.7")
Height incl. rotator: 1 496 mm (58.9")
Opening knives: 517 mm (20.4")
Roller opening, max: 460 mm (18.1")
Roller diameter: 350 mm (13.8")
Specifications
Weight: Dry weight, incl rotator, from 829 kg (1,828 lb)
Feed speed: 0-5 m/s (0-16.4 ft/s)
Gross feed force: 20,3 kN (4,564 lbf)
Feed wheel type: Steel
Delimbing knives, number: 4
Delimbing knives, opening: 517 mm (20.4")
Saw bar: 67 cm (26.4")
Saw motor: 19 cm3/rev (1.16 cu in/rev)
Fell/Cut diam. theor. max: 580 mm (22.8")
Max hydraulic flow: 240 l/min (63.4 gal/min)
Max hydraulic pressure: 28 MPa (4,061psi)
