Pisces - Model SGA-22 -Head off Gutting Machine with Roe Saving

The Pisces SGA-22 and 32 are Salmon eviscerating units that include an active cutting system to enable removal of roe and/or viscera without the need for pre-gulleting.

Traditional roe-saving machines require a gulleting operation to separate the gullet at the throat of the fish, and rely on a pulling action to separate the egg sac or viscera from the body of the fish. This pulling operation often leads to the skein and sac being either damaged or pulled from the roe, thereby reducing value.

The SGA-22 & 32 utilize an active cutting system, rather than a static blade, to ensure clean cutting of the gullet and membrane, and removal of roe or viscera intact and undamaged. Care is also taken to ensure that the roe/viscera is exposed to only a minimum amount of water.

The SGA-22 is designed for head-off operations, while the SGA-32 incorporates additional guides and control mechanisms to allow for head-on operation.

The SGA-22 & 32 are made of all non-corrosive materials and comply with all CE machinery directives for safety, hygiene and ease of cleaning.

• High speed
• One operator
• Versatile design
• Simple to operate
• Easy to maintain
• Low operating cost

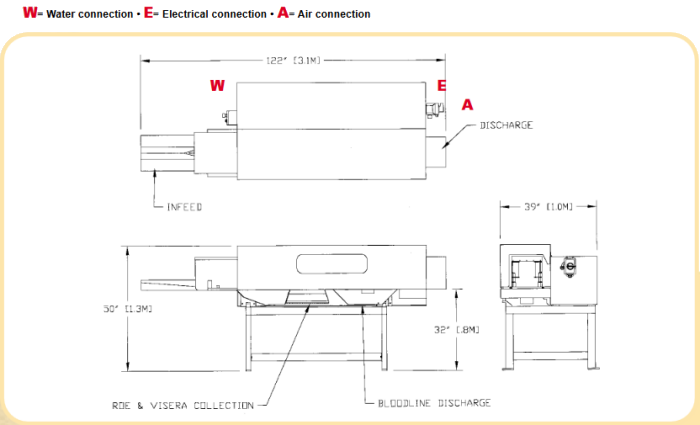

• Water Connections: Standard garden hose connection 1/2"
• Water Usage: 5 US gallons per minute or 18.9 liters per minute
• Air: 90 PSi (6.2 BAR) 1CFM (28.3 Liters/Mini SGA 32 only
• Electrical: Per Customer Specifications
• Power: 24 Amps at full load <S> 220 v, 4.5 Kw
• Operators: One
• Net Weight: 2500 lbs. (1200 Kgs)
• Weight Export Crated: Contact Pisces for details
• Crate Volume: Contact Pisces for details

Specifications subject to change without notice • This machine is subject to U.S. and International patents and meets all CE machine directives.
