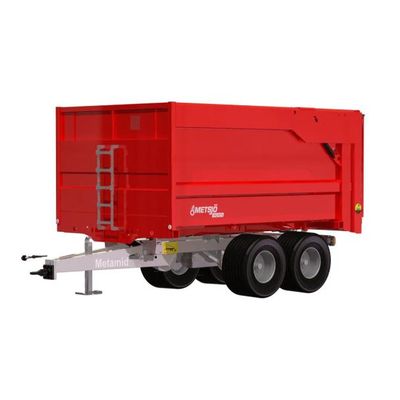

Ivarssons MetaMid Eucon - Model L4165 H1750 W2550 17,5m3 500/50x17 - Heavy-Duty Grain Trailers
Item number chassis: 110132. Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle. Flange width 1850 mm. Coated according to KTL-method, black. Rim connection 161x205x6 open nuts. Hydraulic brakes: on all drums, According VVFS 2003:20. Manually adjusted brake arms. Maximum hydraulic pressure 110 bar. Cover sheets stop dirt entering the brake drums. Back tipping, tipping angle 55º, Oil volume 10L /210 bars. Lights according TSV LED 12-24V 7 pol.. Prepared console for mounting an axle lifting system. Prepared console for mounting different drawbars. Colour Metsjö grey. Prepared for MetaMid/MetaNo bodies. Chassis weight 1 550 kg, Technical load 15 000 kg.
- Item number container: 142670
- Eucon body Mid/No L4165 H1750 W2550 17,5m3
- Heavy duty Steel 450 Brinell: Container bed 3,2 mm and sides 2 mm
- Hydraulic tailgate H1750, high opening angle 130". Drop-proof
- Perforated sight window 500x2000 with cover plate
- Hooks for load securing - outside
- Consols for mounting supporting legs on the containers
- Colour red, painted according Metsjö standards
- Fits on MetaMid and MetaNo chassis
- Weight 1 520 kg
- Weight of the trailer 3070 kg, Payload 11 930 kg
- Surface treatment: chemical degreasing, blasting SA 2,5
- The body is puttied.
- Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm.
- Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L
- Equipped with:
- Rear hydraulic outlet 1/2 flow, 106643 x 2 pcs.
- Rear hydraulic brake outlet, 106642
- Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366
Maximized capacity
Low cost per transported ton
We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.
Change of container
The right equipment for the right job
On our tipper trailers, you can change the container/flatbed, and in this way use the chassis all year round for harvesting, dump truck driving, manure driving, machine moving and bale transport.
Well-thought-out construction and the best materials
Low own-weight
We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.
Axles
Stability
Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.
Large wheels within legal width
Accessibility
Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width
