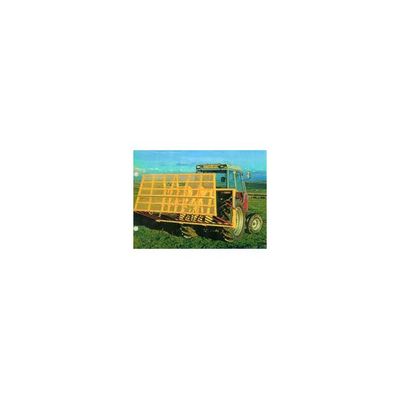

Grays - Model SGH10 - Heavy Duty Push-off Buckrakes

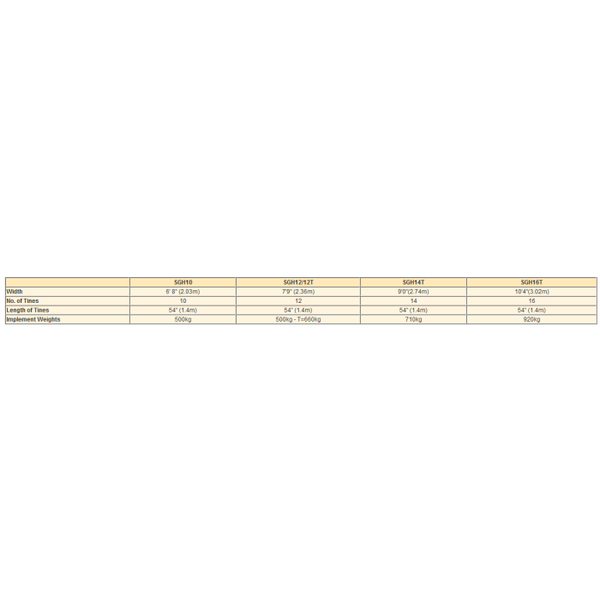

Grays Heavy Duty Push-off Buckrakes are available in three widths and five models and are manufactured using robust backframe and a simple but effective pendulum-type swivel linkage ensuring long and trouble free service. The SGH10 (2.03m wide) with ten 54inch (1.4m) heavy duty tines and the SCH12 (2.36m wide) with twelve 54inch (1.4m) heavy duty tines are fitted with a double-acting ram.
The SGH12T (2.36m wide) with twelve 54inch (1.4m) Heavy duty tines and the SGH14T (2.74m wide) with fourteen 54 inch (1.4m) heavy duty tines are both fitted with a twin double-acting ram and are ideally suited to the larger farmer contractor. All five models are fitted with side tines, mesh on the push off gate and are supplied with feed hoses.
All Grays Buckrakes can be supplied to suit tractor front linkages manufactured to the appopriate British Standard.Adaptor plates are also available to allow any of the five models to be fitted to a wide range of farm handlers.
All Grays Push-off Buckrakes include 32" (810mm) side tines, mesh on gate and tractor feed hoses as standard.
