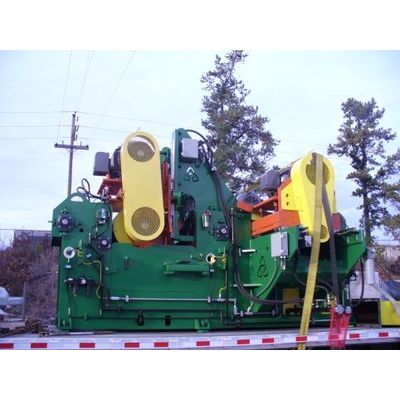

Hi-Speed Optimized Traverse Edger System

The 2 Saw Edger for Centerline Feed is designed to enhance efficiency and precision in milling operations. This equipment features a chain race for the RC80-2 summit top chain, extending through the outfeed for strip drop-out. Three overhead press rolls on the outfeed chain ensure stable and consistent material handling. The independent arbor saw modules slide on 3-inch chromed shafts, driven by two 75 HP, 1800 RPM motors with V-belt drive to the arbor shafts, enhancing the cutting performance. The edger includes 2 7/16-inch diameter TG&P arbors with 15-inch collars, coupled with two linear positioning saw set cylinders with proportional valves for exact adjustments. Drive guards are installed for safety, and additional press rolls are strategically placed within the edger frame to ensure smooth feed and discharge of materials. However, the saws themselves are not included. The unit also features a six-knife head for 12-inch coverage driven by a 200 HP motor with V-belts and sheaves, controlled by a linear positioning top head set cylinder assembly. The operation is powered by a 30 HP VFAC drive, ensuring consistent and powerful throughput. This edger is a robust addition to any milling operation, promising durability and precision in lumber production.
