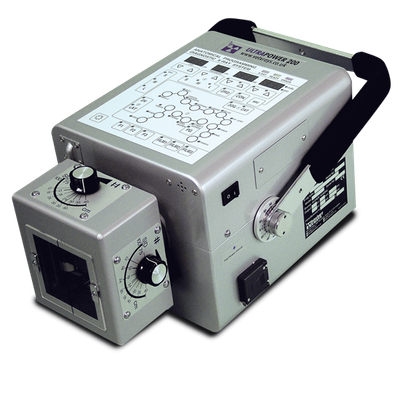

Veterinary X-Rays - Model Ultrapower 200 - High Frequency Veterinary X-Ray Machine
The Ultrapower 200 is a high-frequency X-ray machine designed for veterinary use, enabling accurate and straightforward X-ray imaging. It allows users to bypass manual calculations by selecting the animal type, size, and area of interest, with the machine automatically setting the appropriate exposure factors. Its operating range is from 30 to 100 kV, adjustable in 2 kV increments, and offers current settings of 25 to 40 mA with an effective increase up to 100 mA. It runs on single phase AC power, 50/60 Hz at 240 volts. Key features include a 1.2mm x 1.2mm focal spot and a 2.7mm aluminum equivalent filtration. The compact design measures 290 mm in width, 400 mm in depth, and 230 mm in height, weighing a total of 16 kg. The timer allows for exposure settings between 0.01 and 2 seconds, making it versatile for different diagnostic needs.
The fantastic new high frequency Ultrapower 200 enables x-rays to be taken accurately and simply time after time.
Instead of referring to your exposure guide, just click the animal type, size and area of interest and the Ultrapower 200 will set the correct exposure factors for you automatically.
- Fully anatomically programmed.
- kV range from 30 to 100kV in 2kV steps
- DR ready. Plug your DR system directly with no additional synchronisation boxes
- High frequency mA from 25 to 40
- Wipe clean touch panel display
- Digital display of kV, mAs and time
- Automatic line voltage compensation, ensuring output accuracy
- Audible exposure warning
- Powered by 13A domestic supply
- Suitable for use with any of our stands, tables and mountings
- 5 year extended warranty
- kV(2kV steps) : mA
- 30 to 60kV : 40mA (effective 100mA)
- 62 to 70kV : 35mA (effective 87.5mA)
- 72 to 80kV : 30mA (effective 75mA)
- 82to100kV : 25mA (effective 62.5mA)
- Source : Single phase AC 50/60HZ 240v
- Timer : 0.01 to 2 seconds
- Focal spot : 1.2mm x 1.2mm
- Filtration : 2.7mm Al equivalent
- Dimensions : 290(w) x 400(1) x 230(h) mm
- Total weight : 16kg
