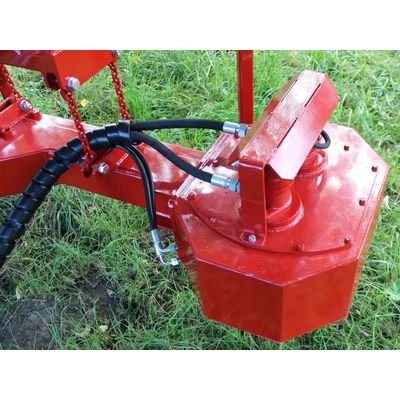

Feucht-Obsttechnik - Model FSC - High Fruit Harvesting Trunk Shaker
Shaking of up to 75 trees per hour with a trunk diameter of up to 50 cm. The FSC trunk shaker is ideally suited for high trunk orchards. Using the trunk shaker, up to 75 trees per hour with diameters of up to 50 cm can be shaken. The shaker is telescopic up to 150 cm. The high trunk shaker is operated with three double-action hydraulic control devices, which must be available on the tractor. The oil supply of the tractor must be at least 40 l/min.
Working with the trunk shaker is extremely simple. The gripper attached to the three-point linkage of a tractor encloses the trunk of the tree to be shaken. The pressure on the rubber jaws attached to the gripper is infinitely variable. A hydraulically driven unbalanced mass shakes the entire tree. Cherries, plums, yellow plums, apples, pears, olives, or nuts can thus be harvested particularly effectively and quickly.
For the shakers, grippers are available for trunks with a diameter of up to 60 cm.
- shaking of trees with a trunk diameter of up to 50 cm
- suitable for high trunk orchards
- increase harvest productivity by shaking up to 75 high trunk trees per hour
- control via 3 double-action hydraulic control devices, which must be available on the tractor
- the oil supply of the tractor must be at least 40 l/min
- telescopic with 1.50 m stroke
- cross mounted shaker head with flat rubber jaws
- Length: 300 cm
- Width: 210 cm
- Height: 100 cm
- Site type: up to 75 trees/h
- max. clamping area: 50 cm
- Shaking performance: approx. 500 kg
- Weight: ca. 500 kg
- telescopic: 150 cm
- from tractor performance: 60 PS
- Pump performance: from 40l oil capacity per minute, must be available on the tractor
- Particularities:
- Shaker head swivelling 50°
- Without control panel on tractor
- Without oil supply
- Optional:
- Control devices
- Control panel with control devices
- Joystick with control devices
- Hydraulic pump with control devices and oil cooler
