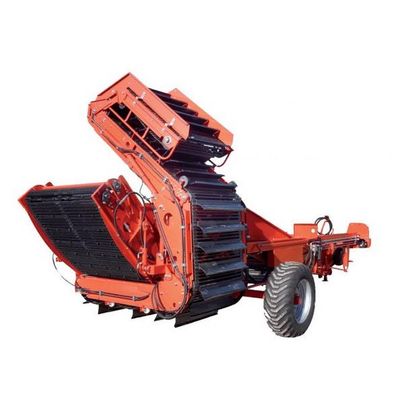

Imac - Model OL 1400 - High Output Onion Loader
This machine has been designed principally for harvesting onions but also red beet and potatoes with a 2 phases system. It is a trailed machine with an hydraulically dri- ven drawbar and steering wheels. The standard version consists of 2 conveyors with adjustable level wheels and a sponge roller.The sieving-elevator web is very large (140 cm) and has a gentle slope to avoid rolling and peeling. The swinging pick up follows perfectly the shape of the ground. A big cleaning hedgehog with adjustable speed and angle completes a rich and important serial base equipment.
- Lenght 896 cm
- Width 234 cm
- Height 355 cm
- Output per hour ha/h 1,00-1,50
- Power requirement 60 kw
- Weight 4000 kg
- Hydraulic foot
- Hydraulically driven drawbar
- Onion pick-up with adjustable level wheels and synthetic roller
- Swinging pick up
- Sieving web with straight bars pitch 40 mm
- Second sieving web with straight bars pitch 40 mm
- Cleaning hedgehog with hydraulically adjustable speed and angle
- Hydraulically driven elevator web
- Hydraulically adjustable intensive shakers (1 pc) on the first sieving web
- Hydraulic system for cylinders fed from the tractor
- Electro-hydraulic controls
- Indipendent electro – hydraulic system with a variable flow pump for the hedgehog, shakers and elevator web
- Tyres 400/55-22,5
- Hydraulically driven steering wheels
- Cooling radiator
- Cardan shaft with clutch
- 2 speed gearbox
- Shareblade in all width
- Grass cutting discs Ø 630 mm
- Additional level wheels for the digging unit
- Color monitor with 2 camerase
- Braking system (oil or compressed air)
- Outlet funnel
- Cardan shaft adapter with 8 grooves
- Road traffic approval (valid only for Italy)
A large swan neck (width 100 cm) unloads the crop directly into trailers (up to an height of 4 m) or into transporting crates on special carriages as long as the swan neck is equipped with a proper outlet funnel. The care afforded to the machine con- struction and details ensures a delicate harvesting of the crops and exceptional performances that varies between 40 and 70 t/h. The hydraulic controls are electromagnetic.
