Horizontal Model Milk Cooling Tank

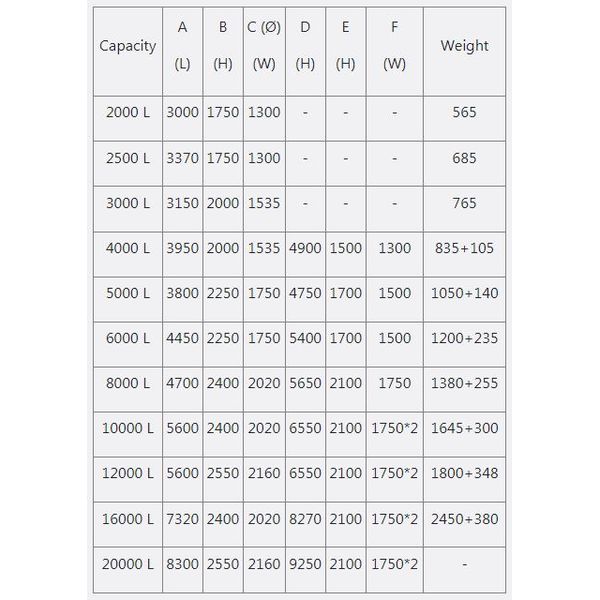

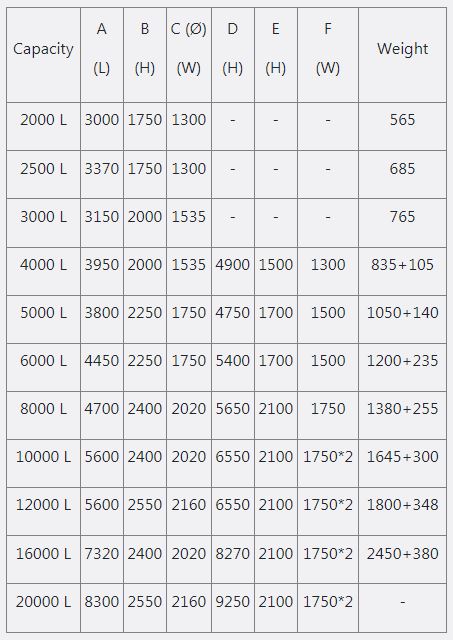

Capacity

2000 Lt, 2500 Lt, 3000 Lt / 4000 Lt, 5000 Lt, 6000 Lt, 8000 Lt, 10000 Lt,12000 Lt, 16000 Lt, 20000 Lt, 25000 Lt

Construction

• The insulation thickness is 60 mm and made of HCFC-free water-based high-density polyurethane foam material.
• Product outlet has a DN50 male union butterfly valve.
• AISI 304 stainless steel Ø 500 mm manhole cover is available on top.
• There is Ø 100 mm product inlet on the manhole cover.
• A Ø 90 ventilation grille is available on top.
• Manual measuring scale with calculation table with a precision ratio of 3-4% is available.
• It has AISI 304 quality steps to prevent slipping.
• It is designed so that zero liquid remains inside during the discharge.
• Welded areas are 1st class Argon TIG welding and 1st class smooth polished.
• Adjustable bolt feet are available on the bottom.

Cooling Group

• Fast and frost-free cooling according to minimum milk quantity
• Minimum amount of gas charge
• A 404 gas cooled
• Kromel Milk Cooling Tanks provide the possibility of cooling each milking (32 °C - 38 °C) from 35 °C to 4 °C at ambient temperature.
• The compressor has a solenoid valve, expansion valve, drier, sight glass, liquid retainer and valves.
• Direct cooling system
• Certificate of conformity to TSE 13732/CE/EAC standard
• Test compliance report
• Optional designs for 2-line, 4-line and 6-line milking systems available.

Electrical Group

• Electrical panels with protection class IP 65
• It has the capability of operating with 380 volt energy.
• Temperature display with digital thermometer
• Special designed, easy to use electronic control card to control the tank operation, milk temperature, electronic milk measurement, washing system and menus.
• In the event of failure of the electronic system, the cooling process can be continued by putting it into the manual position.
• There is an additional electromechanical safety system set to 1.5-2 °C to prevent milk from freezing.
• In case of any faults, an error message about the fault is given.
• In multi-system compressors, the compressors are gradually activated to prevent sudden drawing of current.
• It is possible to see malfunctions, washing temperatures, milk temperatures and electrical failures that have occurred in the last 20 days.
• Phase protection relay
• Automatic mixing program with special software; after the milk reaches the desired set value, the operating time of the mixer can be adjusted in the desired intervals. (3 minutes operation and 10 minutes stop)

Automatic Washing

• Thanks to the specially designed CIP ball, water penetration is provided to the entire surface.
• Automatic washing capability with one button
• Low detergent consumption
• Easy to use detergent container
• Safety system preventing water from entering the milk

Digital Level Indicator

• It has the possibility of measuring with 0-2% error margin.
• The amount of milk in the tank can be monitored from the control panel.
• The amount of milk in the tank can be displayed in mm, kg and Lt.

Option

• Automatic detergent dosing pump
• Notification of faults to the mobile phone as a message
• Heat recovery tank
