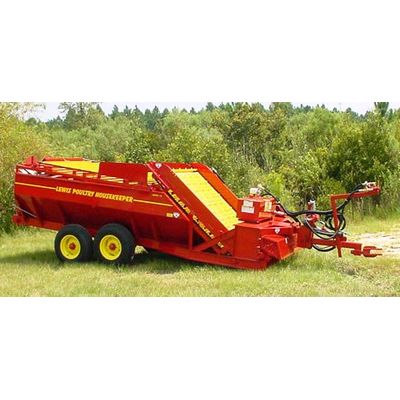

Lewis Brothers - Model 4 -Housekeeper
The #4 Housekeeper is designed to increase productivity by an additional 20% above the #2 and #3 due to the wider head on the machine. This allows for much faster operation and requires a minimum of 60hp for the tractor. Like all other models, the #4 can be customized with various options to meet the individual needs of the grower.
- Working Height: 73″
- Overall Length: 22.5′
- Head Width: 69″
- Weight: 5300 lbs (empty)
- Capacity: 175 cu. ft.
- Tires: 12.5L x 16
- Tires (Tandem Optional): 9.5L x 15
- Required PTO Horsepower: 60 HP
- Hydraulic Oil: AW-68
- PTO Hydraulic Pump: 22 gpm
- Oil Reservoir Capacity: 30 gal
Standard Equipment:
The Hydraulic Tailgate is available on all units that spread and makes the unloading process faster and easier.
Available on model’s #2 & #3 and reduces repair cost by removing the need for belts and pulleys. The hydraulics deliver a more consistent torque which makes the machine operate more efficiently.
Optional Equipment:
The optional spinner assembly is available on model’s #2, #3, #3.5, #4, #5 & #5LP and is just what you need to spread litter on fields or to apply fresh material to the house floor. The spinners can be removed when the job calls for unloading only.
Solid bars are available on model’s #2, #3, #3.5, #4, #DB-1 & #DB-4. By adding the solid bars, the operator can convert from de-caking to total cleanout in a short time.
The tandem axle is available on model’s #3.5, #4, #5, #5LP, #DB-2, #DB-2LP, #DB4 and the Spreader Body. The tandem axle provides a wider base and can absorb rough terrain.
