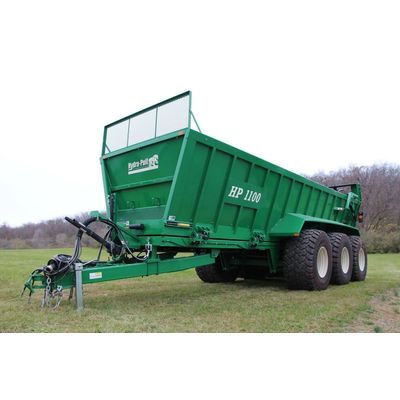

Pik Rite - Model HP 1100 - Hydra-Pull Manure Spreader
From Manure Spreaders - Hydra-Pull Spreaders
This spreader was developed to meet the ever increasing demands of larger farm operators and custom haulers. The HP 1100 shreds packed manure and spreads in a wide pattern.
-
Most popular related searches
Remove the quick detach beaters and it becomes a l...
Remove the quick detach beaters and it becomes a large capacity silage or forage wagon!
All Pik Rite spreaders can be ordered in one of four color choices; traditional green, industrial yellow, red or blue.
Special features of the HP 1100 spreader include:
- GEA tri axle chassis, lift axle, front and rear steering
- Digistar load cells
- Heavy duty pintle chain with solid side plates and link pins
- Upgraded front idler rollers for better chain tracking
- 2-piece drive sprocket for improved serviceability
- Easy access grease fitting banks
- Air or hydraulic activated brakes
- Road safety and field work lights
Product Specifications
- Capacity: 1100 Bushels
- Struck Level ASAE S324.1: 890 cu. ft.
- Heaped ASAE S324.1: 1370 cu. ft.
- Load carrying capacity: 30 tons
- Inside width of box: 60 in. to 96 in.
- Depth of box: 53 in.
- Overall width w/flotation tires (tire size): 137in. (28LR26)
- Overall height: 137 in.
- Overall length: 38 ft. 4 in.
- Bed length: 30 ft.
- Loading height: 113 in.
- Number of beaters: 2
- Beater speed: 420 RPM
- Fan diameter: 34.6 in.
- Number of paddles on beaters: 70 total
- Tractor PTO HP (min. recommended): 250 HP
- Number of unloading speeds: Infinite from 0-15.21 ft./min.
- PTO speed: 1000
- PTO shaft diameter: 1 3/4 in.
- Number of end gate cylinders: 2
- Tare weight: 26,500 lbs.
