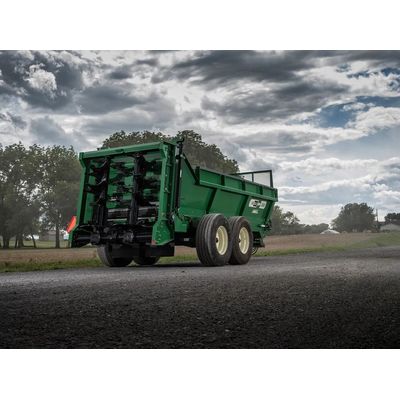

Pik Rite - Model HP 380 - Hydra-Pull Manure Spreader

Efficient

• Vertical beaters shred heavy material and provide a wide and consistent spread pattern
• Compost beaters spread light material in a wide pattern at a controlled rate
• Adjustable apron speed (0-16 ft. per min.)
• Heavy duty walking beams (8 bolt x 4 hubs)
• Road safety and field work lights

Durable

• Side wind jack w/ safety chain
• Robust pintle chain rated up to combined 120,000 lbs
• Spring loaded take-up bearings allow for chain flex without damage

Operator Friendly

• All bearings have easy access grease fitting banks
• Sloped sides allow for easier loading
• Hydraulic metering end gate contains free flowing material
• Available in traditional green, industrial yellow, red or blue

• Capacity: 380 Bushels
• Struck Level ASAE S324.1: 276 Cubic Feet
• Heaped ASAE S324.1: 427 Cubic Feet
• Load carrying capacity: 11.5 Tons
• Inside width of box: 83.5-65 inches
• Depth of box: 28.5 inches
• Overall width w/flotation tires (tire size): 115 inches (500/50-22.5 radial tires)
• Top of beaters: 94-7/16 inches
• Overall height: 102 inches (gate closed)
• Overall length: 27 feet 4 inches
• Bed length: 218 inches
• Loading height: 70-5/8 inches
• Number of beaters: 2
• Beater speed: 420 RPM
• Fan diameter: 34.6 in.
• Number of paddles on beaters: 36 total
• Tractor PTO HP (min. recommended): 100 HP
• Number of unloading speeds: Infinite from 0-15 ft/min
• PTO speed: 1000
• PTO shaft diameter: 1-3/8 or 1-3/4 inches available
• Number of end gate cylinders: 2
• Tare weight: 11,500 lbs.
