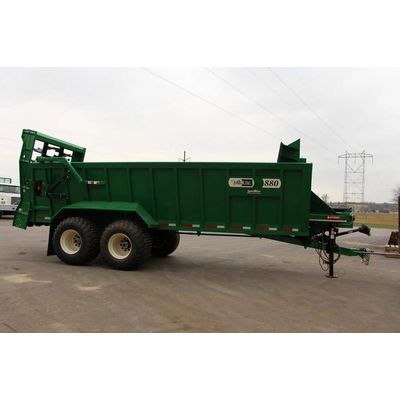

Pik Rite - Model HR 880 - Hydra-Ram Manure Spreader

With a wide and consistent spread pattern, as well as unloading speeds from 0-15.21 feet per minute, the HR 880 is truly innovative and efficient. Heavy-duty axles with lubricated wheel bearings allow the spreader to easily accommodate high volumes. Additionally, a vertically-adjustable articulating implement hitch smoothly pulls weights exceeding 180,000 pounds. Two-stage hydraulic push technology carries the front portion of the load which greatly reduces compaction optimizing your spread pattern. The aggressively contoured, double curve hydraulic ram fits snugly into the vertical beaters providing optimal clean-out at the end of the load!

All Pik Rite spreaders can be ordered in one of four color choices; traditional green, industrial yellow, red or blue.The Pik Rite Hydra-Ram HR 880 manure spreader includes other beneficial features, such as:

• NEW – quick detach beaters for stock piling or silage transportation
• Smooth consistent push for faster and more even unloading
• Compact push-off cylinder design reduces overall length of the machine
• Excellent clean out = less material that could fall off during road travel
• 700/40-22.5 high flotation tires = less soil compaction
• Centralized grease locations for easy routine maintenance
• Direct drive beater system which means no unnecessary roller chains needing high maintenance
• Rotating hitch with bull pull or clevis hook up
• Adjustable spread pattern and width for different materials
• Nutrient management weigh scale options
• Less maintenance than chain spreaders

• Capacity: 880 Bushels
• Struck Level ASAE S324.1: 712 cu. ft.
• Heaped ASAE S324.1: 1096 cu. ft.
• Load carrying capacity: 24.2 tons
• Inside width of box: 60 in. to 96 in.
• Depth of box: 53.2 in.
• Overall width w/flotation tires (tire size): 132 in. 700/40-22.5
• Overall height: 135 in.
• Overall length: 32 ft.
• Loading height: 98 in.
• Number of beaters: 2
• Beater speed: 420 RPM
• Fan diameter: 34.6 in.
• Number of paddles on beaters: 70 total
• Tractor PTO HP (min. recommended): 200 HP
• Number of unloading speeds: 0-15.21 ft./min.
• PTO speed: 1000
• PTO shaft diameter: 1 3/4 in.
• Number of end gate cylinders: 2
• Tare weight: 17,040 lbs.
