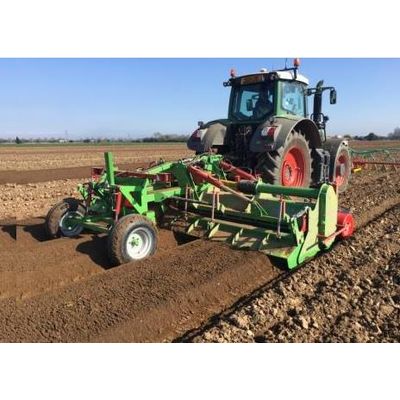

Baselier - Hydraulic Folding Full Width Rotary Hook Tine Cultivator
The BASELIER Hydraulic Folding Full Width Rotary Hook Tine Cultivator is designed for effective cultivation of beds before planting or sowing and also of grass land and other stubbles. Models are available up to 9.1 metres in width. All Baselier FKV Series Rotary Hook Tine Cultivators are now available with a rubber top plate as a factory fitted option. The rubber top plates replace traditional stainless steel ones, with the flexible nature of the rubber leading to a considerable reduction in soil adhering to them during work.
-
Most popular related searches
Products Details
Cleaner running, less cleaning downtime, lower tine wear and reduced fuel consumption of up to 15% have all been experienced by UK growers with a rubber top plate equipped test machines during 2015. This is a simple yet effective solution to the problem of under hood soil build-up on this type of machine; typical of Baselier’s approach to design and development.
Specifications
- Frame 2 frame folding in the middle with 4 cylinders, 2 hydraulic hoses
- PTO Shafts P600 with auto-reset clutch, tractor side 13/4-20 splines
- Gearbox 310HP, 1000RPM, 3 point connection Cat III
- Plates 2 x ful width plates 1 x L+1 xR
- Hook Tines Welded and mounted on tine clamp on rotor shaft diameter: 75cm
- Lighting Set for transport on public road
- Transport width (on road) 3 metres
- Wheels 4 x steel wheels D500 x 180 with spindle adjustment
- Topside Rotor Shaft With Rubber plate, without inspection cover
