CRD - Hydraulic Manure Scraper

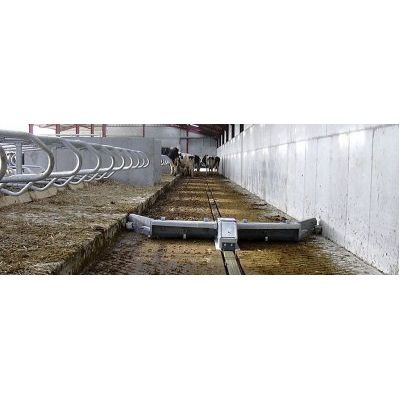

The hydraulic manure scraper easily adapts to all cattle farms. Useful for scraping manure and slurry from your cows, ducks and pigs, it works manually or in automatic programming. It can be installed either in a groove or directly on existing masonry, without specific installation. The CRD hydraulic scraper saves you significant time in carrying out your daily agricultural tasks and increases your profitability.
There are 3 models of scraper (galvanized and CE approved ): straight, U-shaped and V-shaped, which allow slurry to be cleaned from corridors 1 to 10m wide. This scraper benefits from many advantages such as a simple and efficient hook-up, its reinforced IP55 hydraulic system, its sophisticated control cabinet with frost protection option, as well as the end of the corridor.
The hydraulic scraper demonstrates unparalleled power. Its hydraulic cylinder pulling or pushing according to the configuration of the building is designed for a thrust of around ten tons. The jack support can be recessed under a rail or placed on the existing masonry.
LIMIT SWITCH AND MECHANICAL REVERSAL SYSTEMThe limit switch system allows, either by a needle switch or by a magnet detector installed in the concrete, a free movement of animals. At the end of the lane, the direction of movement of the scraper can be reversed and return to its starting point. This reversal can be triggered manually.
- Very resistant system even with young bulls
- External shutter opening adjustment
- Eliminates the use of the tractor or the self-propelled machine
- No need to enter the boxes to close and reopen the barriers
- Time saving
- Maintenance of a clean soil improving the sanitary level of the breeding
- Galvanized rail and scraper for perfect corrosion resistance
