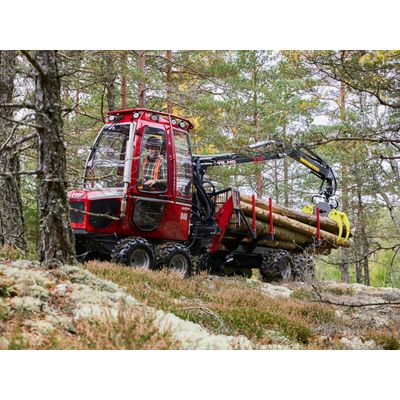

Alstor - Model 840 Pro - Hydrostatic Combination Forestry Forwarder
With the Alstor 840 Pro, we take the step into a new type of machine that is based on the same proven foundations as our other machines, but with a hydrostatic transmission. With the 840 pro, you get unsurpassed efficiency in the forest. The construction is, like other models, made of Swedish High-strength steel combined with modern methods. The stepless hydrostatic transmission provides an efficient and safe movement in all situations. With locked diff machines, machines climb over logs and mountains where no other machine can get around. Alstor 840 Pro is a combi machine with the ability to remove all timber banks and gates. With a crane tip-hung unit, thinning and clearing can take place in a very efficient way without soil damage. A flexible load carrier with many opportunities for adaptations and new challenges.
- Max load: 3000 kg
- Length: Standard 5.37 m / Length 5.77 m
- Width: 1.57 m
- Service weight: 2450 kg
- Engine: 3-Cyl Diesel 25 hp
- Electrical system: 12v, Generator 60 A
- Transmission: Hydrostatic transmission with lockable diff erential
- front & rear, constant 8 wheel drive. Stepless high and low gear.
- Brakes: Travel brake via transmission, mechanical
- disc brake for parking.
- Steering: Power steering orbitrol, folding steering wheel,
- reverse control / dual command by default.
- Tires: 25 × 12.5-10, 8-layer
- Speed: 0-18 km / h
- Crane: 5.0 m extension crane with swing-damped 0.15 grip and
- mechanical 2-lever.
- Harvesting unit: Tapio 160. Cutting diameter 25 cm. Weight 230 kg.
- Length measurement and proprietary software. Includes counterweight 1000kg.
