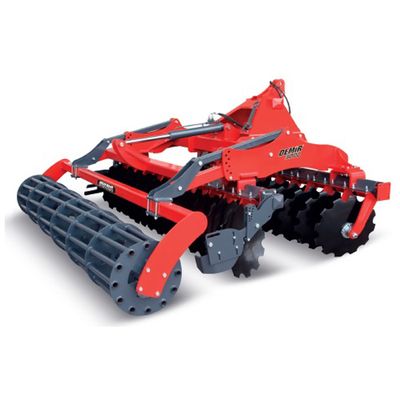

Demir - Independent Multi Disc Harrow
Disc harrow is a compact disc tillage machine. The two rows of offset discs to work the soil are arranged for mixing and breaking of stubble in a single pass. In this tillage type, the disc move is changed with the working depth that is in turn changed by operating the hydraulic coupling height on the tractor; this changes the pressure on the disc, the disc angle to the tillage direction, this also enables a more aggressive cultivation of the discs into the soil. The overall machine is compact and easy to manoeuvre on the field and on the road. The machine is also very convenient in operation. Thanks to a machine this versatile the stubble and harvest residues are thoroughly mixed.Model DBG 16 DBG 20 DBG 24 DBG 28 DBG 32
Number of Disc 16 pcs 20 pcs 24 pcs 28 pcs 32 pcs
Working Width 2000mm 2500mm 3000mm 3500mm 4000mm
Disc Diameter 600mm 600mm 600mm 600mm 600mm
Disc Row Distance 250mm 250mm 250mm 250mm 250mm
Required Power 65-75hp 80-100hp 100-115hp 110-130hp 130-150hp
Weight 1350kg 1800kg 1900kg 2150kg 2450kg
