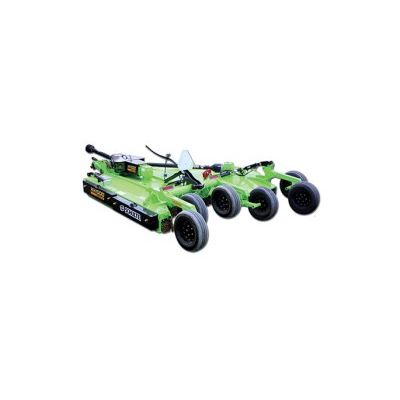

Schulte - Model XH-1000 Series 4 - Industrial Grade Cutter
New, extra heavy duty, high horsepower Bondioli gearboxes with new oil level sight glass and 1-3/4" input shafts and 3” (75mm) output shaft. New extra heavy duty Bondioli G8 drive lines. New high-torque wing clutches with high slip release settings ensure better performance in rough cutting. Single domed, sweep clean deck design eliminates excess weight over competitive double deck designs, eliminates build up of debris and prevents rusting on top side of deck
Most popular related searches
- Tandem walking axles result in smooth operation over rough surfaces
- Increased frame depth & blade tip speed results in a superior flow of material
- With larger 24" aircraft tires, transport height is increased to 17.5" along with improved performance in wet conditions
- Lower pressure 8" stroke hydraulic phasing cylinders for a level lift
- Low maintenance Constant Velocity Tractor Shaft or Patent Pending 540rpm Equal Angle Hitch available
- Center suspension reduces stress on tractor drawbar
3/8” thick formed deck protection rings prevent blade to deck contact - Double safety chains with individually replaceable links are standard equipment
- Large high horsepower gearboxes with 1-3/4" input shafts and 2-3/8" output shafts, 260hp divider, 210hp center & wings
- Higher slip clutch release settings than previous design ensures better performance in rough cutting
- 1/4” thick stump jumpers with patent pending Pentagon Blade Bolt design allows cutter sections to ride over obstructions
- Cutting width - 126" (3.20 m)
- Overall width - 139" (3.53 m)
- Overall length - 192" (4.88 m)
- Transport width, min - 88" (2.24 m)
- Transport Height - 88" (2.24 m)
- Deck Thickness - 7GA (3/16") (4.6 mm)
- Weight, approx. - 5200 lbs (2364 kg)
- Hitch weight, approx. - 1700 lbs (773 kg)
- Minimum tractor HP - 50 HP (45 kW)
- Recommended tractor HP - 75 HP (60 kW)
- Cutting height - 1.5 to 17.5" (38 to 144 mm)
- Ground Clearance - 17.5" (444mm)(with 24” tire)
- Cutting capacity - 4" material (102 mm)
- Blade overlap - 6.5" (165mm)
- Divider gearbox rating - 260 HP (194kW)
- Centre/wing gearbox rating - 210 HP (157 kW)
- Blade tip speed, - 540 rpm
- Centre - 848 rpm, 15,493 ft/min (4874m/min)
- Wing -986 rpm, 15,991 ft/min (4722m/min)
- Blade tip speed, - 1000 rpm
- Centre - 850 rpm, 15,743 ft/min (4884m/min)
- Wing - 1002 rpm, 16,022 ft/min (4798m/min)
- Wing working range - 25 degree down to 90 degree up
