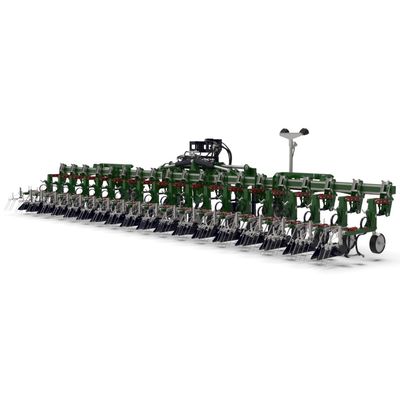

Thyregod - Model TRV 2.0 HD - 6-9 Meter - Inter-Row Cultivator

Through our super accurate camera steering, the Thyregod TRV row cleaner is able to go down to 2,5 cm on the rows, even at speeds above 10 km / h.

Section control today is a demand in many crops. And with the market’s highest frame of 85 cm and the highest lifting height of the sectional lift at a full 75 cm, we ensure that no plants are damaged in wedges and in headland.
Precision as well as high efficiency are the key words.

Most modern cleaner
TRV inter-row cultivator is built with the foremål that could clean all sorts of crops in many different conditions.

We even made the possibilities of adapting to your wishes easy!

Frame
TRV is built around a double-frame where
cylinders which are controlled by an auto-steering system
can move the boom with sections from side to side (+/- 20cm).
TRV is also equipped with two stabilizing discs that help keep the cleaner stable.

The frame of the TRV 2.0 HD is up to 40% stronger with its new construction compared to previous models.

Rowshift
The inter-row cleaner can also be shifted laterally by a further 37.5 cm with the new built-in rowshift structure.

Both the regular sideshift and rowshift use the same strong side steering cylinder with built-in position sensor.

Extreme ground clearance
The frame of the TRV interrow cleaner is designed with an extremely large ground clearance of as much as 85 cm and sections can be lifted all the way up from the row with a height of 75 cm with our patented TRV section lift.

The TRV cleaner is the only one on the market with such a high boom!

Clean with great precision
Thyregod Optical Lane Assistant
The TRV row cleaner is designed for the use of optical Vision Control control. This helps to ensure accurate control using cameras
A specially manufactured camera is connected to the Vision control system. The camera contains 2 color cameras that photograph the plant rows. The camera usually looks for 2 rows, but this function can be changed in the terminal, as desired. The information the camera picks up is sent to the Terminal in the tractor, where it is then converted into movements on the cleaner. At the same time, the terminal keeps you informed.

Mechanical row steering
The mechanical row control system keys on the side of the crops in 2 different rows. The only thing that prevents the length of the season for weed control is the height of the boom, which is a full 60-80cm!

Compact for the road
The inter row cultivator can be easily folded when driving on country roads.
When you need to leave the field, the wings are folded in using the tractor’s hydraulics, then the sections can be easily put into the transport lock and the 2 safety plates are quickly mounted on the middle of the cleaner. You are now ready to drive safely in traffic.
TRV inter-row cultivator can be supplied with legally required LED traffic lights.

thyregod trv hackmaschine radrenser inter row cultivator

Sectionlift
As additional equipment, our patented system of section lift for TRV inter-row cultivator can be purchased. The section lift lifts the entire section up from the row so that you do not damage the plants when you e.g. turns in the headland.

Section lift is prepared for driving via GPS (Requires ISO-BUS box and small adjustment in the tractor). This means that when you hit a wedge in the field, the tractor’s GPS can control automatic lifting of the sections.

Sowing equipment and band spray

Do you have a desire to be able to sowing grass seeds? Why not do it when you are out cleaning the last time in the field?

You can expand your inter-row cultivator with sowing equipment.

You can also equip your cleaner with belt spray equipment.

Cleaning your crops

We have made the options for using your row cleaner very flexible in relation to cleaning your crops.

Clean the sections that are mounted on the boom of the TRV inter-row cultivator can be built according to your wishes.

Sections for Inter-row cultivator

Build your sections according to your needs. The possibilities are endless!

• 15 - 32cm row distance
  • Here we suggest S-teeth or Angel-cutters
• 35 - 57cm row distance
  • Here we suggest S-teeth + shields or Angel-cutters + shields
• 57 - 90cm row distance
  • Here we suggest S-teeth + shields
• Potato sections
  • Here we suggest S-teeth + hypperplates
