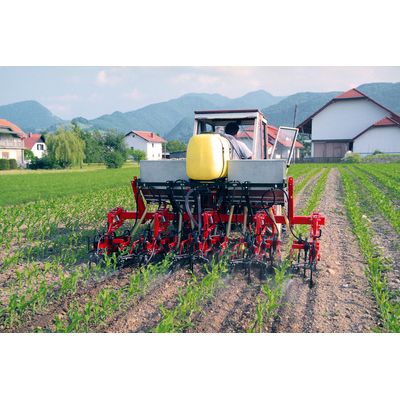

Tehnos - Model OK-4 -Interrow Cultivator

• Transport width (cm)  250
• Reservoir volume (l)  300
• Tractor power (kW)  33 - 48
• Tractor power (HP)  45 - 65
• Machine weight (kg)  375
• Weight of fertilizer dispensing device (kg)  98

• Its use prevents the growth of weeds, reduces soil compaction and limits water evaporation from the soil. It also offers the possibility of simultaneous fertilizer dispensing.
• The depth is adjusted by an adjustable support wheel on each cultivating aggregate separately. The interrow width is regulated by adjusting the position of the spring rods.
• The guiding wheels follow and through the tow bar and the precise linkage indirectly control the interrow cultivator between the rows.
• Parallelogram-mounted generators provide continuous adjustment to the working surface, and the force is adjusted by means of springs.

Accessories:

• Automatic bus for a better tracking in the interrow area.
• Adjustable folding of external aggregates.
• Adjustable plough heads for earthing-up potatoes.
• Protective plates and discs which prevent backfilling and damage to the crops.
• Accurate dosing of fertilizers is enabled by the volumetric feeders. The fertilizer reservoir is made of stainless steel.
