Model BFM Series - Irrigation Flow Meters

Flow biCoders™

Features

• The Flow biCoder has true two-way communication using a 9-byte packet for commands and replies.
• The Flow biCoder is capable of self-identifying to the two-wire controller and will report pre-configured unique serial numbers and zone addresses.
• The Flow biCoder serial number is printed on the side of the decoder.
• Each Flow biCoder has 24 inches of 16-gauge PVC jacketed solid core wire to connect to the two-wire.
• Each Flow biCoder has 24 inches of 18-gauge PVC jacketed stranded core wire to connect to a pulse output flow meter.
• The Flow biCoder can be connected to flow devices with either 2 or 3 wires.
• The Flow biCoder has collision detection on the two-wire and is able to resend messages if a collision is detected.
• The Flow biCoder reads a minimum of a 5-millisecond low pulse at 200 hertz and a maximum of 200 pulses per second.
• The Flow biCoder is able to search for a flow meter.
• The Flow biCoder is able to run a pulse-output flow meter up to 1000 feet away.
• The Flow biCoder has a built-in amperage meter to accurately measure and diagnose flow meter electrical problems such as “no current,” “station short,” or “over current.”


Connection Requirements

• Use two-wire connectors that are DBR/Y or equivalent direct bury splice, made for full submersion and effectively seal moisture out.
• Make all connections per manufacturer’s specifications.
• Verify that no loose, unshielded wiring can touch the soil, water, or another copper conductor causing a leakage of current to the ground or a short circuit across wires.
• Make all splices inside a valve box.
• Mount all connections vertically to eliminate standing water inside the DBR/Y connector.


Flow Features in the Irrigation Controller Software

• Learn the flow for each zone
• Use flow data to maximize the number of zones the controller can turn on at once to help shorten your water windows
• In the event of unexpected high or low flow, automatically determine which zone is at fault and alert you without interrupting the rest of the watering cycle
• Protect your site from mainline breaks with configurable high and low flow shutdown settings

Baseline`s Irrigation Flow Sensors and Flow Meters

PFS Series Flow Sensor Features

• Molded Mounting Tee - improved sensor accuracy and low flow performance
• Threaded Retaining Nut - easier to service in valve box, more moisture resistant than competitive sensors
• Lightweight Impeller - improved low flow performance, detects and measures flows as low as 0.20 ft/sec
• Built-in two-wire decoder
• Pre-configured K and Offset values
• Sensor can be connected directly to the two-wire path on any Baseline controller - no additional equipment required
• Diagnostic LEDs - visual indication of flow, improved troubleshooting
• Detects and properly measures lower flow rates - compatible with micro and subsurface drip applications
• Highly accurate over a large range of flows
• Available in 1”, 1.5”, 2”, 3” and 4” versions

PFS Series Flow Sensor Specifications

• Wetted Materials:
  • Impeller: High Density Polyethylene
  • Shaft: Tungsten Carbide
  • O-ring: BUNA N
  • Tee, housing and retaining nut: Type 1 PVC
• Connection Type
• 1", 1.5", & 2"  Slip
• 3" & 4"    Saddle mount
• Maximum Working Pressure
• 1", 1.5", & 2"  240 psi
• 3" & 4"    150 psi
• Recommended Flow Range
• 1", 1.5", & 2"  0.25 to 15 FPS
• 3" & 4"    0.25 to 12 FPS
• Pressure Rating: designed to Schedule 40 specifications
• Electrical Output: Baseline two-wire, 30 VAC RMS
• Temperature Range: 32°F to 140°F (0°C to 60°C)
• Accuracy: better than ±1% within recommended flow range
• Repeatability: better than ±0.3% within recommended flow range

BFS Brass Flow Sensor Features

• Brass bodied sensor with female NPT connections
• Threaded Retaining Nut - easier to service in valve box, more moisture resistant than competitive sensors
• Lightweight Impeller - improved low flow performance, detects and measures flows as low as 0.50 ft/sec
• Built-in two-wire decoder
• Pre-configured K and Offset values
• Sensor can be connected directly to the two-wire path on any Baseline controller - no additional equipment required
• Diagnostic LEDs - visual indication of flow, improved troubleshooting
• Highly accurate over a large range of flows
• Available in 1½”


BFS Brass Flow Sensor Specifications

• Wetted Materials:
  • Impeller: High Density Polyethylene
  • Shaft: Tungsten Carbide
  • O-ring: BUNA N
  • Tee, housing and retaining nut: Type 1 PVC
  • Body and Retaining Nut Material: Lead free Bronze Alloy C89833 Federalloy® I-836
• Connection Type
• Female Pipe Thread (NPT)
• Maximum Working Pressure
• 250 psi
• Recommended Flow Range
• 0.50 to 15 FPS
• 3 to 90 gpm
• Electrical Output: Baseline two-wire, 30 VAC RMS
• Temperature Range: 32°F to 140°F (0°C to 60°C)

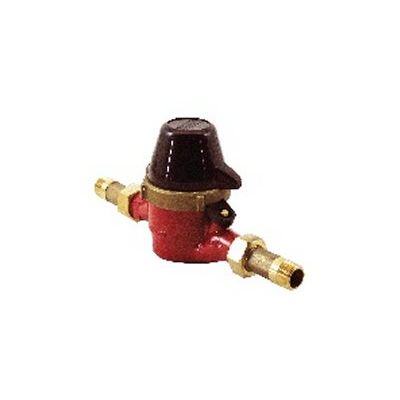

BFM Series Flow Meter Features

• Small, rugged, highly reliable - only one moving part
• No straight pipe installation requirement
• Highly accurate over a large range of flows
• Magnetically driven sealed register with totalizer
• Baseline two-wire ready - no decoder required
• Compatible with all Baseline controllers
• Pre-configured K and Offset values


BFM Series Flow Meter Specifications

• Maximum Working Pressure: 140 psi
• Maximum Liquid Temperature: 122^oF (50^oC)
• Body Material: Corrosion Proof Copper Alloy with Polyester Coating
• Connections: Male Pipe Thread (NPT)
• Electrical: Baseline two-wire (30 VAC RMS)


BHM Series Hydrometer & Master Valve

• Combination master valve, water meter, and flow sensor
• Rugged, heavy-duty construction
• Fast and highly reliable double-chambered valve
• No straight pipe installation requirement
• Highly accurate over a large range of flows
• Magnetically driven sealed register with totalizer
• Baseline two-wire ready – no additional decoders required
• Compatible with all Baseline controllers
• Pre-configured K and Offset values
• Optional pressure regulation available


BHM Series Hydrometer Specifications

• Maximum Working Pressure: 235 psi
• Minimum Working Pressure: 14 psi
• Connections: National Pipe Thread or ANSI Flange
• Body Material: Cast Iron with Polyester Coating
• Diaphragm Material: Reinforced natural rubber
• Electrical: Baseline two-wire (30 VAC RMS)
