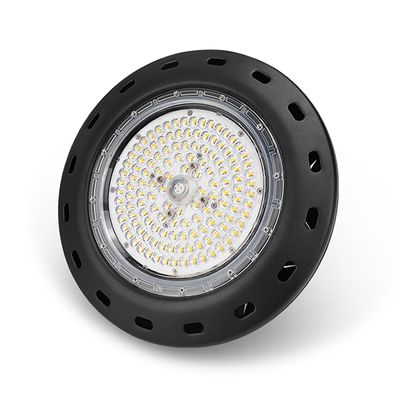

Jiupo - Model UFO-80W -Plant Growth LED Lamp
The UFO type of lamp is ideal for vertical farm applications, but is also suitable for a wide range of other horticultural applications including growth chambers, glass greenhouse and outdoor farm. The single unit is designed to deliver high levels of photosynthetic photon flux (PPF) values with unsurpassed light uniformity, all within UFO shaped design. For easy installation, the fixtures can be daisy-chained together or using them individually as lighting requested. Fixtures are supplied with string of group chained installation.
Mechanical Construction
Black powder coat with aluminum body shell; stainless steel fasteners with string hook hanging.
Single unit with UFO shape design anodized PC extrusions provide thermal management and housing for drivers and wiring. High temperature, injection-molded polymer end caps provide protection form dust and moisture. 3-conductor cables and water-tight provide power and dimming from unit to unit. Each unit has power input cable. Maximum unit to unit spacing is according to the using condition.
Electrical Specifications
Modular design features integrated Universal 108V-305V (50-60Hz) power supply. 80W to 170W power consumption. Customized cable length.
* Standard power input cable without plug, cable with plug is optional.
Electrical Specifications
Modular design features integrated Universal 108V-305V (50-60Hz) power supply. 80W to 170W power consumption. Customized cable length.
* Standard power input cable without plug, cable with plug is optional.
LEDs
Cool color LEDs, the 120°beam angle ensures that the maximum light intensity is delivered directly to the plant canopy at lower mounting heights.
- Size: Φ290*175mm (Φ*H)
- Net Weight: 2.25KG
- Power: 80W
- Spectrum: Full Spectrum
- Exterior Materials: Aluminium
- IP Rating: IP65
- Fixed Mode: Hook Hanging
