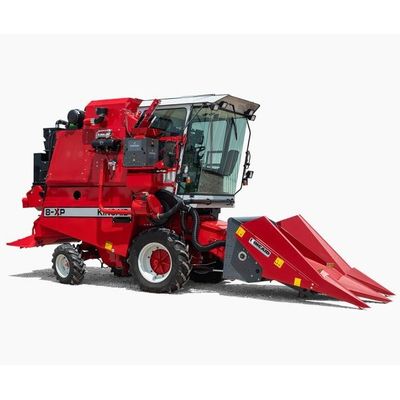

Kincaid - Model 8-XP -Single Plot Combines

This machine combines high capacity and rugged, proven construction with excellent cleanout. It can be equipped with a 1.5, 2.0 or 2.3-meter grain table, two-row multi-crop (sunflowers, sorghum, soybeans) or a two-row corn head. Other options include rape extension, pick-up attachments, sunflower pans, air delivery, air return, data collection, sample collection and custom designs for each researcher. With more than 400 of these machines being used in the U.S. and Canada since 1993 (in crops from canola through corn), this plot combine has a proven track record as best in its class.

All major controls are positioned to the right, leaving the left hand free to steer the combine. The controls operate with ease and precision. Cylinder speed, concave clearance, table and reel adjustments can all be selected from the operator’s seat. The three-speed transmission gives control over power and speed with a hydrostatic drive that operates in all three gears.

The Best Multi-Crop Single Plot Combine on the Market

• The ability to adjust from canola to corn in a matter of minutes
• Adjustable concave, cylinder speed and fan speed from the cab for multi-crop or minor adjustments
• Quick-attach headers for every crop, with single-person operation
• Straw walkers that allow for trashier plots to be cleaned without extra biomass in the sample

Drive Train

• Three-speed hydrostatic transmission with hydraulic/disc brakes
• 15-mph road gear
• Heavy-duty four-wheel drive, hydraulic drive and no-braking drive axles

Harvest Capabilities

• The commercial design of the combine, coupled with research technologies, allows for the most accurate samples at high rates of speed.
• Speed: No other combine can harvest corn or weedy plots as fast as the 8-XP Plot Combine and return a clean sample to the cab or bin.
• Border crops can be harvested at 5-mph with the Kincaid air or paddle delivery system.
• The large 48-bushel capacity grain tank can handle multiple crops with an unloading auger that can reach semi-trailers and large gravity wagons.
• Airfoil sieves allow for cleaner samples when harvesting at faster speeds.
• Regulated seed trials can be sampled and destroyed via the rear-mounted roller grinder option.
