ZILLA - Lawn Mower

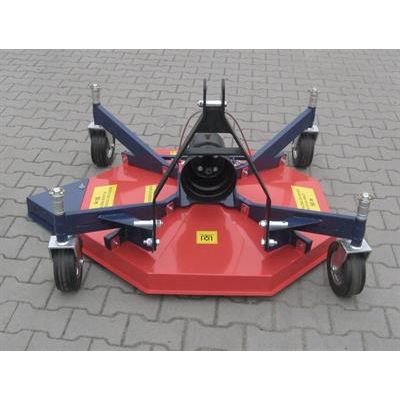

• The main structural component of the lawnmower is a steel body which is also the cover of the cutting knives. The two blades are attached to the ends of the rotor through angular gear.

• The lawn mower is based on four running wheels in their swivel casings.

• The body of the mower can be mounted on the drive chassis to get a side or rear discharge of the mowing grass.

You might also be interested in our different mowers from our production.

• Mounting method: Three-point linkage from the back. Category 1
• Drive: From the tractor PTO by articulated telescopic shaft and angular gear
• PTO rotation: 540 turns / min (left/right)
• Slope mowing area: 12º
• Working unit: The rotor with replaceable blades
• Number of replaceable blades: 2
• Wheels: In the swivel casing
• Cutting height regulation: Spacers (washers) on the axis of support wheels
• Ejection mowing grass choice: Manually by changing the appropriate position and mounting the body mower chassis and change of a cover type
• Ejection mown grass shield: Type: Right / Left / Rear
• Cooperating tractor: Min 10 kW / 13.6 KM
• Cutting width: 1 016 mm
• Cutting height: 25 – 100 mm
• Mowing height regulation: Manual by supporting wheel and the tractor’s hydraulic lift
• Working speed: 7 km/h
• Working width: 1 330 mm
• Length: 1 200 mm
• Height: 850 mm
• Weight: 85 kg
