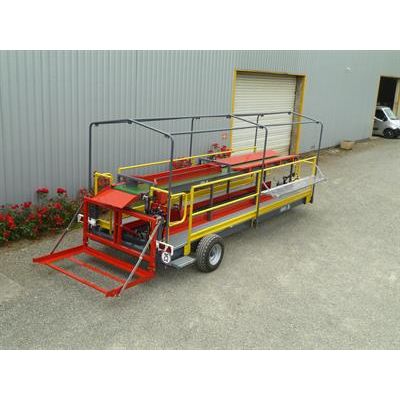

ERME - Model REM - Leaf & Root Topping Trailor
FromERME
Caracteristics: Empty weight: 2500Kg. Total weight: 5000Kg. Over all size: 8.10m x 2.60m. Adjustable tow bar. Single axle, wheels 10.0/75R15. A working conveyor belt 6.50m long. Two working platforms on either side of the belt. A box filling system at the end of the working belt. An over head sun protection. Driven by the tractor PTO shaft 540rpm, a multiplicator with hydraulic pumps. Hydraulic tank. Manual controls (start/stop of the belt, up/down of the big box)
Most popular related searches
- A fold away platform on either side of the machines enables people to place the garlic from the ground ready for the people who will cut the leafs and roots.
- The people placed at the start of the belt (4 maximum) take the bundles of garlic to cut the leaves and roots.
- A work table is adjustable for each person
- The garlic heads are then moved to the second part of the belt which is seperated in three parts.
- The soil and waste stays on the side and at the end is sent to the ground.
- The garlic is placed in the middle and then in to the box filling unit
