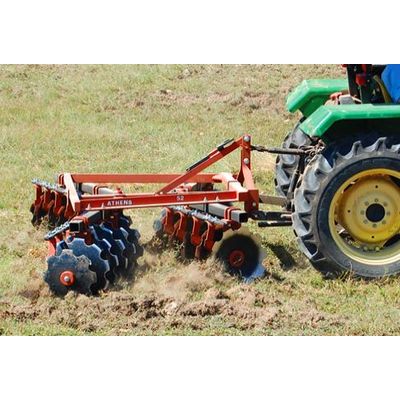

Athens - Model 52 - Lift-Type Disc Harrow
The Main Frame is constructed of ¼` thick steel tubing and ½` thick angle which is truss-braced and reinforced to resist twisting and bending. Compact design allows for easy lifting, straight pulling, and excellent maneuverability in small fields and around close obstacles.
Most popular related searches
- Axles are made from 1.13" square cold rolled steel to insure straightness and to keep bearings and disc in alignment.
- Gang Frames are constructed from 3 x 3 x ¼" structural steel tubing.
- Flangette Ball Bearings on the 52 are greaseable and have triple lip seals.
- Angle of Cut adjustments can be made from 15° to 18° depending on your need for penetration and aggression.
- Disc Blades, 18" or 20" Diameter
- Relube Quadraseal Ball Bearings
- 1.13" Square Cold Rolled Axle
- Spacing, 9", 7½", or 9" Front & 7½" Rear
- Adjustable Angle of Cut: 15° or 18°
- Gang Wrench
- Cat. I Hitch Free Link
- Scrapers
- Cover Discs
- Cat. II Hitch Free Link
