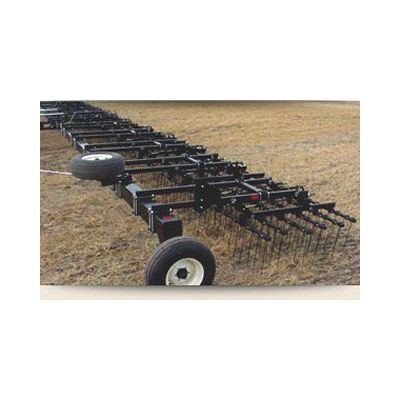

Gates - Light Tine Organic Harrow
The primary uses of the Gates Light Tine Organic Harrow are for light residue management and weed control in-crop, plus seedbed preparation, and post-seeding operations. Saves Chemical. With the Gates Light Tine Organic Harrow, you can control weeds in less time. Its 5/16″ x 20″ tines and parallel link design are ideal for weeding operations in organic and certain row crop applications (sugar beets & potato hills).
Most popular related searches
row crop applicator
row-crop applicator
tine harrow
seed bed preparation
weed control
tine
crop applicator
row crop
harrow
harrow tine
- Weed Control
- Straw management after harvest
- Seed bed preparation
- Post-seeding field finish
- Fertilizer and chemical application and incorporation
- Widths available: 72′ to 84′ custom order up to 112’
- 2″ Knuckle pin (Heaviest in Industry)
- 8″ x 8″ x 1/4″ wall tubing toolbar
- 5/16″ x 20″ tines (height measured from center of coil)
- Parallel linkage with spring lift assist allows fine tuning of tine penetration
- Manual tine angle adjustment
- Harrow sections available in 6 bar arrangement
- Air kits for broadcasting fertilizer, chemical, or seed
- Tire spacing to allow for row crop applications
