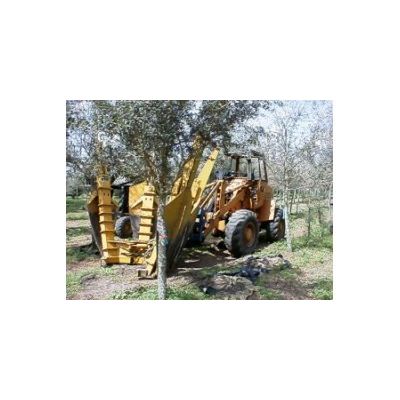

Model 52 - Loader Mounted Tree Transplanters

Tree Trunk Diameter – 5” – 6”. Root Ball Width(Adjustable)- 52”. Root Ball Depth(Adjustable)- 48”. Root Ball Weight (Approx.) – 3,600 lbs. Total Machine Weight – 4,700 lbs. Blade Tower Height (Down)- 80”. Gate Opening – 30”. Operating Width(Closed)- 89”. Number of Spades – 4.
Hydraulic Gate Lock – Yes. Adjustable Hydraulic Pads – Yes. Adjustable Mechanical Pads – Yes. Spade Material – AR 400. Drive System (Min. GPM) – 20
