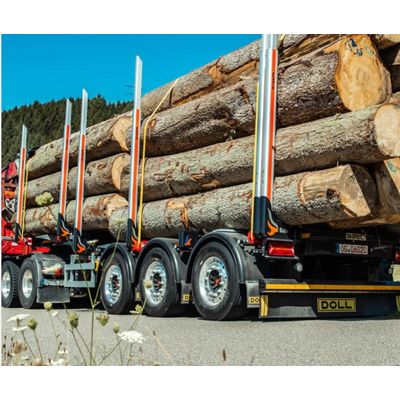

Logo - Model 10 -Short Timber Transport Semi Trailer
Due to the short and strongly cranked design, especially timber lengths of 4 and 5 metres can be transported very economically. The extremely low tare weight gives you maximum loading volume. The simple, low-wear semi-trailer is your special vehicle for short timber transport.
Most popular related searches
short timber transport
timber transport
forestry machinery transport
timber
long timber
forestry machine
timber machinery transport
forestry transport
timber forestry
timber machine
Facts + components
- Full LED lighting at the rear
- Lamp holder mounted on the side of the frame
- Stool and stanchions selectable from various premium products
- Optional: stool displacement at the cranking point
- Optional: Folding handle for stool
- Optional: Plug-in bulkhead
- Transport timber lengths between 2 and 6 metres
- Maximum loading volume due to high frame cranking and recessed stools
- Rigid semi-trailer without telescopic extension
- Very low deadweight
- Payload-oriented design and weight-optimised steel construction
- Low wear, robust and simple design
- Wide track for high driving stability
Dimensions
- Deadweight: from approx. 4,425 kg
- Loading height (loaded): approx. 1,450 mm front and 1,120 mm rear
- Overall length: 9,194 mm
- B dimension: 8,650 mm
- Payload: 35,075 kg
Axles and chassis
- Suspension: air suspension
- Chassis: 9 t drum or disc brakes
Attachment parts and accessories
- Lift axles
- Tracking axle or WABCO OptiTurn
- DOLL® MAMMUT or ExTe bolsters and stakes
- Tool boxes
- A wide range of load securing options
- A wide range of lighting options
- Camera systems
- Various tyre and wheel combinations
