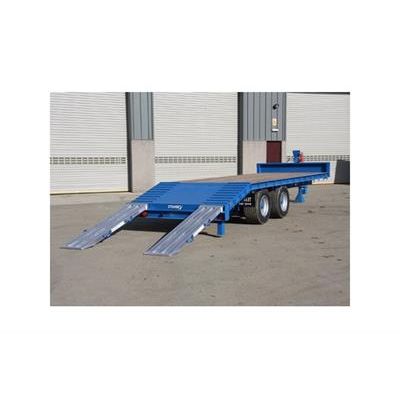

Stewart - Model GX 15 LL - Low Loader Trailers
Carry Capacity: 15,000kg. Maximum Trailer Speed: 20mph. Body: Standard width 2500mm (8’2”). Beaver tail with hydraulically operated rear ramps. Floor Bearers: 100x50 channel. Floor: 50mm Keruing. Side Rave: Pressed steel with keyhole cut outs as chain securing points. Chassis: 250x150 box section.
Most popular related searches
- Axles: Granning 125mm ø 10 stud, 310x190 brakes
- Suspension: Granning underslung 4 spring suspension
- Drawbar: Heavy duty 40mm hitch eye
- Wheel Centres: 10 stud, fully welded high speed rims
- Tyres:
- Double Coin 435/50Rx19.5
- Spray suppression flaps
- Braking:
- Hydraulic braking system
- Ratchet style parking brake
- Lighting:
- LED commercial road lighting system
- Connection to tractor: Removable electric coil
- Rear stop/tail/indicator lights
- Front marker lights
- Side marker lights
- Amber warning light
- Paint: Finished with 120 microns of two pack acrylic high gloss paint
- Optional Extras:
- Fast tow trailer fitted with air braking, ABS & LSV
- Lockable plastic or stainless steel toolbox
- Hydraulically operated beaver tail
- Hydraulically operated floor plate in beaver tail
- Rear wedge to carry boxes
- Removable aluminium ramps
- The steel extrusions are shotblasted and primed prior to fabrication to remove mill scale and ensure a good surface for paint adhesion.
- Axles are used well within their design capacity, not on the limit. All low loader trailers are fitted with four spring suspension.
- The side rave is pressed steel with keyole chain securing points.
- The standard trailer width is 2500mm (approximately 8’2”).
- The trailers are fitted with a commercial road lighting system and the wiring is connected at waterproof junction boxes. The lights are all LED including an LED flashing warning light. There is a stalk fitted at the front of the trailer to keep electric and braking cables tidy and away from the drawbar and dirt. The electric connection to the tractor is a removable electric coil.
- Trailers are finished with 120 microns of paint, applied with an electrostatic system to ensure complete coverage. The top coat is a hard wearing two pack acrylic high gloss paint.
- Standard features include: 600mm headboard, ratchet style park brake, keyhole chain securing points, LED commercial road lighting system with front and side marker lights, stop/tail lights and flashing warning light, rear light guards, hydraulic braking system and spray suppression flaps.
