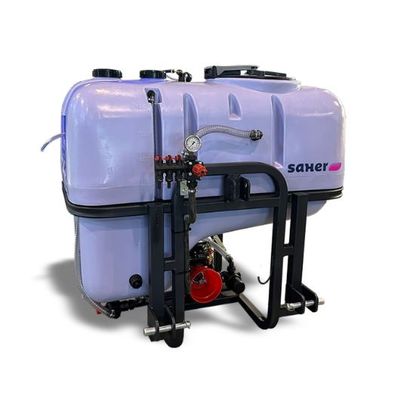

Low Pressure Liftmounted Sprayer
Standard equipment: 3 polyethylene tanks (main, circuit washer and hand wash basin). Capacities (from 200 to 2,000 lts.). Chassis reinforced with anti-corrosion treatment and painted. Annovi Reverberi AR-70 BP pump (2 diaphragms,70 l/m,20 atm). 3-way ECM under pressure control, isometric Ø63 pressure gauge. Anti-pollution charger. Reinforced transmission. Hydraulic agitator. Tank interior cleaning robot (from 500 lts.). Lateral ladders from 1,000 lts.
Code : Main : Wide : Long : High : Fan
S200-17S0BP : 200 lts. : 850 mm : 750 mm : 1230 mm : No
S300-17S0BP : 300 lts. : 1160 mm : 900 mm : 1120 mm : No
S400-17S0BP : 400 lts. : 1160 mm : 900 mm : 1270 mm : No
S500-17S0BP : 500 lts. : 1160 mm : 900 mm : 1365 mm : No
S600-17S0BP : 600 lts. : 1450 mm : 1010 mm : 1320 mm : No
S800-17S0BP : 800 lts. : 1450 mm : 1010 mm : 1480 mm : No
S1000-17S0BP : 1.000 lts. : 1500 mm : 1100 mm : 1640 mm : No
S1200-17S0BP : 1.200 lts. : 1500 mm : 1100 mm : 1840 mm : No
S1500-17S0BP : 1.500 lts. : 1630 mm : 1150 mm : 2120 mm : No
S2000-17S0BP : 2.000 lts. : 1960 mm : 1390 mm : 1770 mm : No
- Different pumps
- Different controls and solenoid valves
- Galvanized chassis
- Electrical installation kit
- Herbicide accessories
