- Model 00MST - Truck Mount Spreaders



MagnaSpread Truck Mount - Distribution of Granular Fertilizer or Lime -

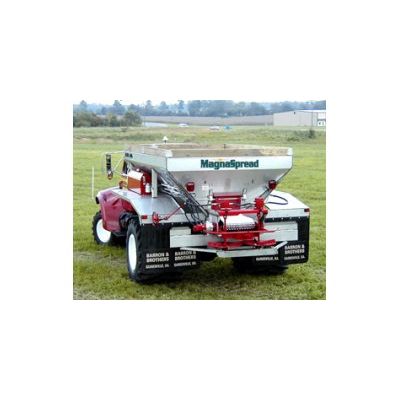

BBI MagnaSpread Truck Mount!

(L-304) 304 Stainless, (L-409) 409 Stainless, (L-C) Carbon
(TH) = Truck-Mount, Hydraulic Conveyor
(L) = Low Profile, Flared Hopper, (H) = High Capacity Hopper, (B) = Bigger High Capacity Hopper
(4520) = 45 Degree Sides, 20' Conveyor
Body Type Options
Option 2 H Body 6' Higher Capacity, 21 cu ft / lin ft struck, 56' high
Option 3 B Body 11' Higher Body 23.5 cu ft / lin ft struck, 58.5' high
Prices are F.O.B. at our facility located in Cornelia, GA unless otherwise noted on a special quotation.  If requested, delivery will be arranged to customer's location.  Freight charges will be determined by number of units and mileage.
Specify the size unit desired.
Detail any optional equipment desired and prices.
State Paint color desired.

  • State of the Art - ELECTROSTATIC PAINT:  Carbon unit is totally primed with a rust-inhibiting alkyd primer and then top-coated with high gloss enamel.  Stainless unit includes all mild carbon steel parts primed and painted.  Salford Red is our standard color.   Color options include red, blue, yellow, black or green.  Some custom colors are available.
  • HYDRAULIC POWER SOURCE:  Hydraulic power to the spinners and conveyor is supplied by a two section hydraulic pump driven by truck PTO.  The hydraulic oil reservoir is specially designed and formed to allow extra cooling area.  The reservoir is equipped with a large filler / breather assembly, sight level gauge and oil temperature gauge.  The reservoir has a capacity of 35 gallons to keep oil temperatures down, thus increasing hydraulic components life.
  • SPINNERS:  Twin 24' diameter 'dished' type Spinners powered by Overhead Hydraulic Motors.
  • CONVEYOR DRIVE:  Spur-Gear drive Reduction Box with 2' diameter output shaft and direct drive Low-Speed / High-Torque Motor(s).  Equipped with flow control valve at front of oil reservoir to increase, decrease, or stop conveyor, independent of spinner system.
  • ELECTRONIC CONTROL:  The Tee Jet CL250 is included in the List Price.  The CL250 provides straight rate control with guidance.
  • BBI BINARY TM HYDRAULIC MANIFOLD SYSTEM for MagnaSpread:  Combines the hydraulic controls for the conveyor and spinners into one control manifold. It includes proportional manual speed control for both spinners and conveyor. Pilot operated relief is standard. A dump valve and a GR is standard for the conveyor. The modularity of the BBI Binary Valve allows for quick easy conversion to GR option and to electronic control.
