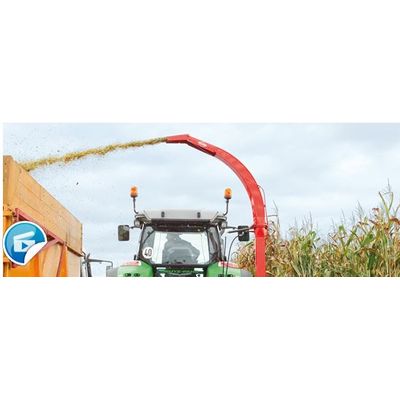

Kuhn - Model MC 90 S Twin - Maize Choppers
KUHN MC maize choppers distinguish oneself for high outputs with low input. Based on the MC 90 S this 2-row MC 90 S TWIN has an added weight of only 15%. The power transmission of the MC 90 S TWIN runs via the PTO drive shaft, V-belts and gears. This requires minimum maintenance. Sharpening and re-adjusting the chopping wheel on the MC 90 S TWIN could not be easier and faster. The second row is transported to the chopping wheel via the intake chain. The discharge chute is hydraulically remote controlled from the tractor driver’s seat. Flap control is by means of a mechanical adjusting facility.
Daily routine maintenance is limited to the lubrication of two easily accessible grease nipples on the chopping wheel. For inspection and maintenance of the chopping wheel the complete chopping unit can pivot backwards. The KUHN weed insensitive cutting system is tolerant of weeds and has a self cleaning function. In addition several features and options make the KUHN MC choppers second to none.
- Number of rows2
- Weight approx. (kg)550
- Knives10
- Tyres16.5/6.5-8 4PR
- Minimum power requirement for PTO (kW)40
- Minimum power requirement for PTO (hp)55
- Row spacing (cm)67/71/75
