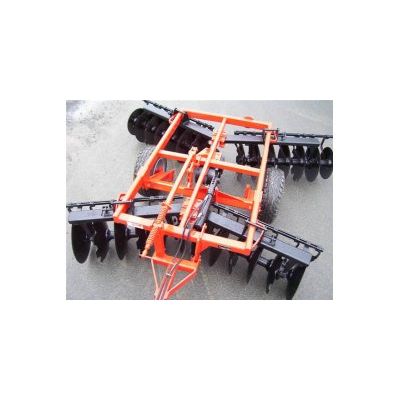

Gregoire Besson - Model Class XR - Manual Folding Disc Harrows

Gang angle
The angle is altered mechanically with a series of holes and a locking pin with a transport width of 2.5m.

Large choice of options
Various drawbars and bearing options.

Class XR

• Working width (m): 2.70 - 3.10 - 3.50
• Frame section (mm): 150 x 100 x 6.3
• 2nd frame section: 180 x 80 x 6.3
• Nbre of discs: 24/28/32
• Discs spacing: 230
• Discs Diameter (mm): 660
• Discs shaft size: 40
• Angle adjustment: Manually (with adjusting bar, broach)
• Linkage: Circulating ring
• Roller: 450 mm diameter
• Options: Different tractive equipment, rebound leaf discs...
