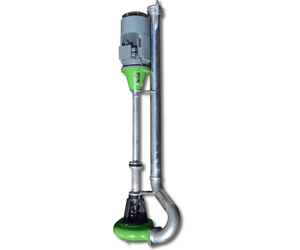

Agriprom - Manure Pump Series

The Agriprom Manure Pump Series is designed for reliable pumping and mixing of slurry in pits and storages. Each pump is equipped with a three-way valve to switch between two modes: pumping or mixing. With its pivotable agitation nozzle (270° horizontally and 60° vertically), the pump ensures thorough homogenization by stirring up floating or sinking layers before transfer.

The robust steel impeller with hardened cutting edges shreds straw and fibers, preventing blockages and enabling high flow rates. The heavy-duty cast-iron volute housing withstands even the most demanding conditions, making the system ideal for long-term, intensive use.

These pumps are suitable for a wide range of applications, including slurry homogenization, transfer to storage tanks, flushing, filling slurry tankers, and feeding biogas facilities.

• Dual Functionality: Switch easily between pumping and mixing.
• Homogenization: Ensures slurry is fully mixed before transfer.
• Durability: Cast-iron volute, hardened cutting edges, and corrosion-resistant components.
• Flexibility: Modular lengths with extension options for different pit depths.
• Versatility: Suitable for livestock operations and biogas installations.

• AG-E – Standard underfloor-discharge design for direct pumping.
• AG2 – Long shaft chopper pump with mixing facility, robust cast-iron housing, stainless steel bolts, and galvanized components.
• AG4 – Heavy-duty model with extra-long intake screw for top-down suction, ideal for demanding applications and biogas use.

• Motor nominal power: 7.5 – 30 kW (depending on variant)
• Protection class: IP55
• Rated speed: 1450 rpm
• Operating voltage: 400 V, 3~, 50 Hz
• Pressure line: 133 mm with quick coupling (Perrot standard, others on request)
• Basic length: 1.0 – 1.25 m, extendable in 25 cm steps
• Sealing: Carbon silicide mechanical seal
• Oil lubrication: 2.5 L (HLP 46)
