The newly devised screw is equipped with a very large inner diameter, making the paddle height fairly small. The former facilitates simple moisture reduction. Additionally, the screw is equipped with a bearing at the press side. Hereby the whole is very robust. The Agri-XL manure separator has an air driven head with 4 separate moving valves that provide a lot of counter pressure. Therefore the Agri-XL can separate even the thinnest manure without any risks.

Al things considered, the Agri-XL is a uncomplicated manure separator suited for dairy, pig and veal farmers that have a need for a manure separator with a high capacity at low costs.

4 individual stop-valves.

The Agri-XL manure separator is completely driven automatically through air pressure on 4 separately moving valves. At this time it is the only manure separator on the market that is driven in this fashion. The manure separator has an air driven head with 4 separate moving valves that provide a lot of counter pressure whereby a wide range of slurry can be effortlessly separated without loss of capacity. In addition, the counter pressure of the valves can be easily set.

Advantages:

In the traditional manner the counter pressure can only be set to one setting. If you wish to change the counter pressure it had to be modified manually. The ‘Agri Xl air’ regulates this counter pressure automatically based on air pressure. The manure separator independently adjusts the counter pressure at the moment when the manure changes, for example when it becomes thicker.
Because of the 4 different valves, the machine can belter cope with unmixed manure types, it corrects itself on every corner of the press head automatically.
Adjustments for the purpose of counter pressure are no longer performed with wrenches and other tools but regulated from the control panel.
Drainage of liquids takes place in the head to accommodate changes in manure even more effectively.

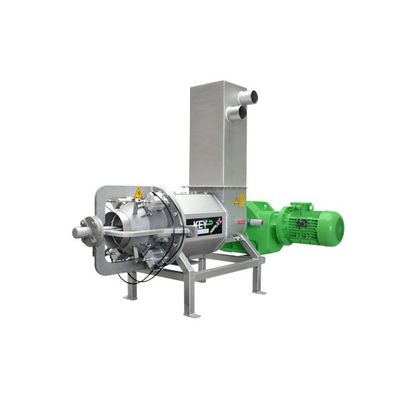

Keydollar - Model Agri-Xl - Manure Separator

Details

Agri-XL Advantages
