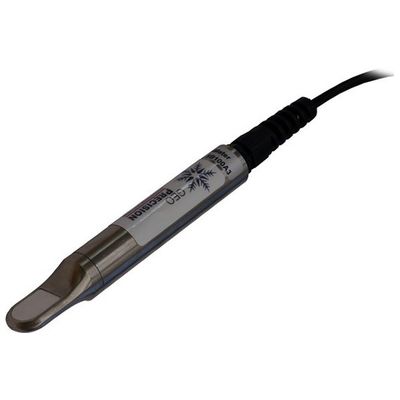

GeoPrecision - Model SDI12 Sensor - Matric Potential & Soil Temperature pF-Meter
The new measerment procedure of the pF- meter is based on the registration of the volumetric heat capacity. A ceramic membran get in balance with the soil tensions. Inside the ceramic membran a special sensor measure continuously the water content, witch is adapted to the hydraulic potential. hereby the matrix potential can be measured active and directly, like a conventionally water filled tensiometer.
Most popular related searches
matric potential
matric potential soil
soil tension
measure matric potential
soil salinity
tensiometer
soil matric potential
- large measuerement range (pF 0.0 to 7.0 = 1 to 10.000.000 hPa / mBar)
- maintenance free
- fast reaction (comparable to traditional water filled tensiometer)
- simultan measurement of soil temperature (accuracy: ± 0.25°C)
- directly and active measurement of matric potential (using ceramic membran)
- measurements values not influenced by soil salinity
- frost proof
- output signal:(SDI-12) or analoge (0 to 7 volt = pF 0.0 to pF 7.0/ without temperature)
The pF-meter delivers digital data either in pF-value or in mbar (hPa). The modern, digital SDI12-concept prevents measurement errors so that cable lengths up to 50 m are applicable.
Measurement networks with up to 24 pF-meters are realisable in connection with the network-compatible GPRS logger from GeoPrecision (i-log).
