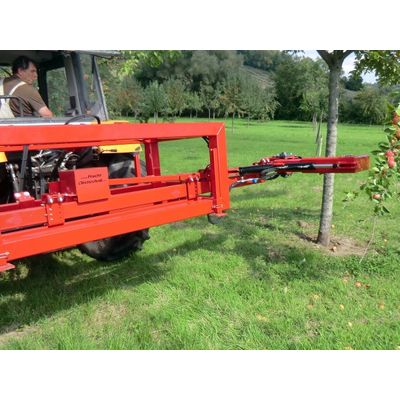

Feucht-Obsttechnik - Model VHM - Mechanical Trunk Shaker

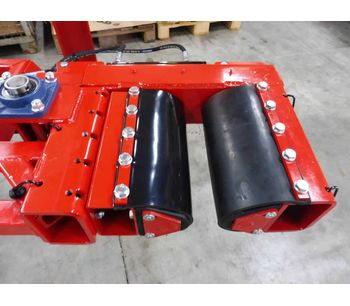

With these machines, a noticeable increase in shaking performance is achieved and this means a significant reduction in harvesting costs. With the mechanical trunk shaker, you can shake up to 200 trees per hour. Our mechanical trunk shaker is easy to operate, suited for juice fruit orchards, and is distinguished by a particularly bark-safe gripper. The mechanical trunk shaker is distinguished by its simple structure. The resulting lower weight causes less ground pressure and this means fewer drive tracks. It is particularly suited for smaller operational sizes and intensive juice fruit orchards up to 10 ha. This means it has a particularly good price-performance ratio. Grippers for logs with a diameter of 5 to 25 cm are available for the shakers.
The VHM trunk shaker is the best-price variant for smaller orchards. Our mechanical trunk shaker is easy to operate, suited for juice fruit orchards, and is distinguished by a particularly bark-safe gripper. The shaker is driven by the tractor drive shaft. This must have at least 30 PS. The VHM trunk shaker is ideally suited for juice fruit orchards with apples, pears, cherries, etc.
A hydraulic motor including drive is available as an option, as is a joystick with hydraulic valves.
- simple operation
- bark-safe gripper
- no threading of the trunk necessary
- stable, plastic-coated frame construction
- optional: Hydraulic motor + drive, joystick with hydraulic valves
- Length: 369 cm
- Width: 112 cm
- Height: 74 cm
- Site type: Intensive fruit
- max. clamping area: 25 cm
- Shaking performance: 150 – 200 trees/h
- Weight: 450 kg
- telescopic: 60 cm
- from tractor performance: 30 PS
- Particularities:
- 2 DW control devices
- Drive via PTO shaft 540 rpm
