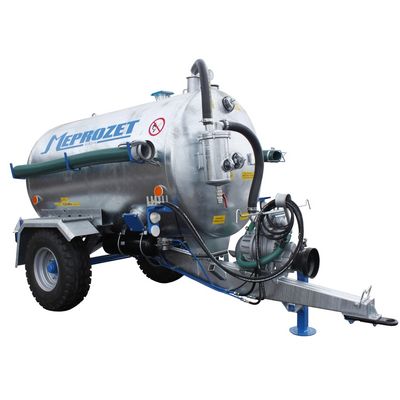

Meprozet - Model PN - 30 / 2 -Slurry Tanker

COMPRESSOR

As a standard JUROP PN 45M compressor is mounted on the drawbar.

GATE VALVES

A hydraulically controlled 4” discharge valve type “MEPROZET” with a lifted spreading spoon is mounted on the rear head. A 2" connection pipe is mounted on the bottom of the tank, allowing to connect an additional discharge hose, e.g., for crops watering.

STIRRER

On request, the slurry tanker can be equipped with a hydraulically driven worm stirrer stirring the tank contents continuously.

OPERATION

Tank filling is achieved by vacuum, made in the tank by the compressor, driven by a PTO shaft from the tractor. Tank emptying is done by overpressure or gravitationally enforced.

SPREADING SYSTEMS

Sprinkling is done by a spreading spoon, which is a part of the standard tanker equipment. On request, other spreading devices can be used.

ROAD TRANSPORT

The tanker has got a CE declaration of conformity. The approval certificate allows vehicle registration and opens free access to public roads.

APPLICATION

• pumping out of liquid waste, manure, municipal wastes
• transport and spreading onto fields and grasslands
• crops watering, sprinkling and fertilising
• end-stage fire extinguishing in the woods and in the fields
• water transport to building sites and roads

• length - 4 100 mm
• width - 1 880 mm
• height - 2 270 mm
• unladen weight - 1 020 kg
• gross weight - 4 020 kg
• tank capacity - 3 000 l
• number of wheels - 2
• wheel track - 1 500 mm
• tyres - 11.5 x 15.3
• vertical load - 7.5 KN
• tractor horsepower - 30 HP
• filling time - 2 min
• spreading spoon spilling width - 14 m
• compressor type - JUROP PN 45M
• compressor capacity - 5 300 l / min
