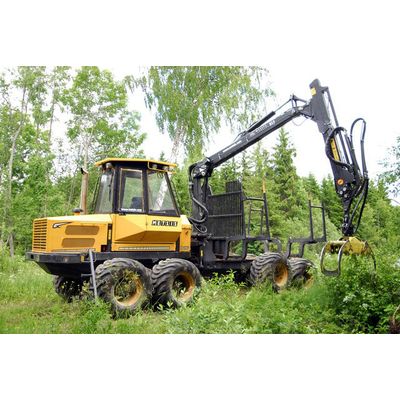

Metsis - Model 208F -Forwarders

ENGINE

• 4-cylinder Sisu turbodiesel
• Nominal power: 127kW
• Fuel tank volume: 120 l

POWER TRANSMISSION

• Hydrostatic mechanical transmission
• 2-speed transfer box: NAF
• Driving speed slow: 0 - 9 km/h
• Driving speed fast: 0 - 24 km/h
• Max. drive power: 130 kN

AXLES

• Portal type identic bogie axles in front and rear: DANA transmission type - gear-driven bogies
• electro-hydraulically operated differential locks, front/rear
• Off-switchable rear axle in higher speed

STEERING

• Electro-hydraulic articulated steering
• Steering angle: ± 43°

BRAKE SYSTEM

• Hydraulic multi-disc working brakes in front and rear
• Spring-loaded parking and emergency brakes in front and rear

TYRES

• Front / rear: 700 x 24,5 or 600 x 22,5

HYDRAULIC SYSTEM

• Hydrostatic pump: Danfoss
• Hydrostatic motor: Danfoss
• Max. working pressure: 42 Mpa
• Variable efficiency loader hydraulic pump Parker with flow: 145 l/min, 1000 rpm, working pressure: 21,5 Mpa
• Hydraulic oil tank volume: 110 l

ELECTRIC SYSTEM

• Control system: IQAN Digital Control
• Supply voltage: 24 V
• Alternator: 100 A
• Batteries: 2 x 150 A
• Working lights: 16 x 50W LED
• LOADER
• CRANAB or MESERA
• Reach: 9,2 m or 9,6 m
• Operating: with 2 mini-joysticks

CABIN

• Comfortable and lightful cabin
• Effective heater
• Air conditioner
• Ergonomic driver seat
• For servicing lifted cabin moves to the side
• OPS, ROPS, FOPS certified cabin

STANDARD EQUIPMENT

• Fire extinguishers: 2 pcs
• Radio (Bluetooth, USB, AUX)
• Tools kit

OPTIONAL EQUIPMENT

• Fuel filling pump
• Wheel chains
• Wheel tracks
• Xenon working lights
• Hydraulic oil filling pump
• Optional heater Webasto
• Additional middle load bunks
• Additional rear load bunks
• Front bulldozer blade
