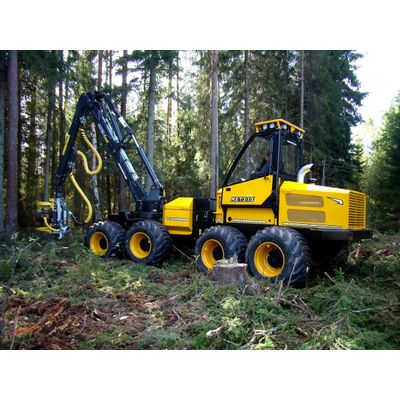

Metsis - Model 608H -Harvesters

WEIGHT

• Self weight: 16 200 - 16 600 kg

DIMENSIONS

• Width: 2600 - 2800 mm
• Length: 7100 mm
• Height: 3750 mm
• Ground clearance: 610 mm

ENGINE

• 6-cylinder Sisu74CTA turbodiesel
• Maximum power: 180kW/2000 rpm
• Max. torque: 1000Nm/1400 rpm
• Fuel tank volume: 350 l

POWER TRANSMISSION

• Hydrostatic mechanical transmission
• 2-speed transferbox: NAF
• Drivingspeed slow: 0 - 9 km/h
• Drivingspeed fast: 0 - 25 km/h
• Max. drive power: 180 kN

AXLES

• Portal type identic boggie axles in front and rear: NAF transmission type - gear driven boggies
• Electro-hydraulically operated differential locks, front/rear
• Off-switchable rear axle in higher speed

STEERING

• Electro-hydraulic articulated steering
• Steering angle: ± 44°

BRAKE SYSTEM

• Hydraulic multi-disc working brakes in front and rear
• Spring loaded parking and emergency brakes in front and rear

TYRES

• Front / rear 700 x 26,5 or 600 x 26,5

HYDRAULIC SYSTEM

• Hydrostatic pump: SAUER
• Hydrostatic motor: SAUER
• Max. working pressure: 42 Mpa
• Variable efficiency hydraulic pump Rexroth with flow: 210 l/min, 1000 rpm, working pressure: 21 - 23 Mpa
• Hydraulic oil tank volume: 250 l

ELECTRIC SYSTEM

• Control system: IQAN Digital Control
• Supply voltage: 24 V
• Alternator: 100 A
• Batteries: 2 x 150 A
• Working lights: 16 x 70 W

HARVESTER HEAD

• KETO, KESLA, AFM, WARATAH

MEASURING DEVICE

• Motomit IT/PC

LOADER

• CRANAB or LOGLIFT or KESLA
• Reach: 9,5 - 11,0 m
• Operating: with 2 mini-joysticks

CABIN

• Comfortable and lightful cabin
• Effective heater
• Air conditioner
• Ergonomic driver seat
• For servicing lifted cabin moves to side
• OPS, ROPS, FOPS certified cabin

• Fuel filling pump
• Wheel chains
• Xenon working lights
• Wheel tracks
• Hydraulic oil filling pump
• Optional heater Webasto
• Control calibers Motomit Caliper 500 mm
• HP Deskjet printer for A4 paper
• External modem Siemens GPRS/GPS
