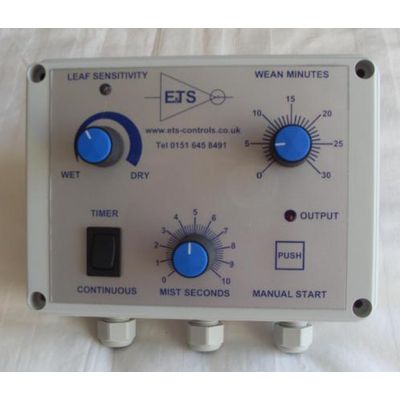

ETS - Mist and Wean Unit
To produce a control to provide a cutting with the optimum conditions of growth. In the early stages of growth the control can be set to give predominantly mist conditions. As the cutting matures, the interval between misting can be increased thereby effectively weaning the plant.
Most popular related searches
leaf wetness
horticulture production
weaning
wean
horticulture product
irrigation valve
leaf wetness sensor
wet sensor
horticulture produce
irrigation
- Integral 3-way fused terminal block connected to a 240Vac 50Hz supply
- Safe 24v AC 50Hz to irrigation valve. Output rated at 0.5 amp.
- Interval timing range from 30 secondto 30 minutes.
- Burst length timer range from 0 to 10 seconds.
- The following control optionare available:
- Mist, no leaf connected, used aa timed function interval plumist no leaf override.
- Mist until leaf wet (interval plumist with no leaf override.) Leaf connected
- Mist until leaf wet (interval plumist with leaf override). Leaf connected.
- Mist continuously until leaf wet (mist only). Interval set to a minimum of zero seconds. Leaf connected.
- Can be used solely aa mist controller.
- Leaf or continuoucontrol, switch selectable.
- Manual trigger for mist burst.
- Adjustable leaf sensitivity control with LED indications.
- Wet leaf sensor lead lengthto a maximum of 20 metres.
- Fused on primary and secondary outputs.
