Tey Farm - Mobile - Self-Propelled Stirring Auger
What It Does: Facilitates drying by lifting grain from the bottom to the top. Mixes and blends the grain or other combinable crops. Makes the grain extremely flowable and non-compacted. Facilitates aeration. Helps maintain grain in store and allows quicker drying. Removes hot spots.
- 2.2kW gear motor with stop start safety switch
- Space age design 840mm aluminium platform with motor mount and unique steering device
- 50mm to 80mm grain stirring auger; lengths 2.0m-4.0m
- Grain Butler weight with 2.0m auger is 38kg
Tey Farm Systems offer stirrers as both fixed installations or portable units. Most existing stores can be retro-fitted with a stirrer but in those cases where a stirrer is required simply to facilitate air movement during a wet harvest a portable unit may be more suitable.

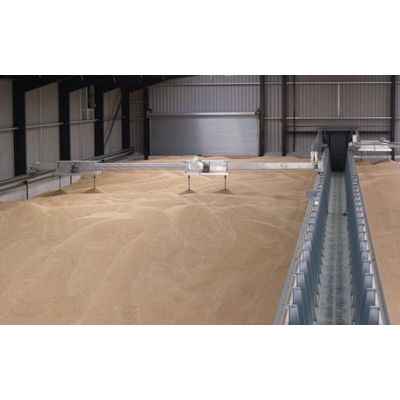

Fixed installations are available for floors up to 15.8m wide and depths of up to 4.2m.
Portable stirrers are available with auger lengths up to 4m and are available as single or double units, manual or remote-controlled.
EXTRAS
- Augers 1.5, 2.0, 2.5, 3.0 & 4.0 metre (diameter varies with length)
- Mobile Socket 16amp 5 pin
- Extension lead 50m c/w socket and plug 3 phase
- Extension lead 50m c/w socket and plug 1 phase
- Conversion kit 4-5 pin
- Delivery and commissioning charge
The addition of a stirrer offers higher drying rates for combinable crops but beware, these should only be fitted to stores designed specifically for surcharge loading.
Stirrers allow more airflow through the crop, increasing the depth at which grain can be stored when drying.
