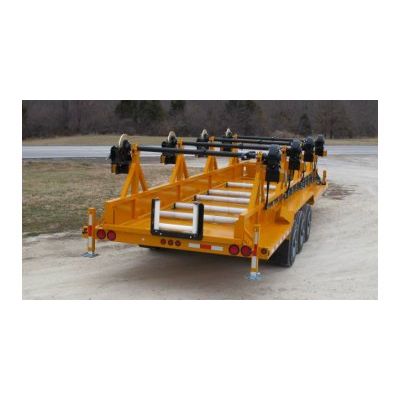

Model 4RT 313-12K -Hydraulic Reel Trailer

CAPACITY:
42,000# GVWR-Calculated at 15% Weight Transfer to Tow Vehicles
10,000 # Approx Curb Weight
32,000 # Approx Load Capacity

DIMENSIONS:
Overall Length:  36``
A-Frame:  5`
Cargo Bed:  31`L x 72"W x 15"H
Overall Width:  101"
Reel Size:  (4) Four  86"D x 60"W x 3" Center Hole

AXLES:
Triple 12,000 #  Axles
Electric Brakes
(6) Six 235/75R17.5 LR-H Tires
(1) Pair Mud Flaps

REEL RACKS:
(4) Four - Fixed with Heavy Duty Bronze Bearings, Retainer Cap, Pull Pin & Spring Cap
(4) Four - 2 7/8" Reel Bars with Crossarm and (1) One Locking Collar
(4) Four - Hydraulic Take Up Assembly,
(4) Four - 20" Tensioning Brake Assemblies, 16` x 3/4" Annealed Naval Brass Rotor, Hayes Brake Caliper Develops 10,000 lbs of Clamping Force Resulting in 4,200 ft lbs of Torque at the Shaft
(1) One - 14 HP Kohler Gas Engine With Electric Start and Recoil Back Up, 20 Gallon Hydraulic  Reservoir, 10 Micron Fluid Filter
8 gpm
2,250 psi Continuous
2,900 psi Max
2,200 lbs of Line Pull @ 2,250 psi on 24" Drum
Hydraulic Quick Disconnects Mounted at Front of Trailer to Run Off Truck Hydraulic Tool Circuit

TONGUE, HITCH & JACK:
7" x 3" Tubular Steel A-Frame
6-Position Adjustable Hitch Plate (14" through 27")
3" Lunette Eye, 35K Capacity
1/2" x 36"L Galvanized Safety Chains with Safety Hooks and Anchor Shackles
12,000 Static Load, Series Dropleg Jack
(1) One - Pair 12,000 lb Stabilizer Jacks Located at Rear of Trailer

MAIN FRAME:
7" x 3" Tubular Steel Main Frame
7" x 3" Tubular Steel Crossmembers at Front of Cargo Bed
7" x 3" Tubular Steel Crossmembers at Rear of Cargo Bed

CARGO BED:
12 Gauge Smooth Steel Floor
3" C-Channel & 3" Angle Crossmembers on 24" Centers
Sides - 12 Gauge Steel with 3" x 3" Tubular Steel Top Rail & 5" x 3" Lower Rail

CATWALK:
1/8" Steel Diamond Tread, Mounted on 4" x 2" Tubular Perimeter Frame
Full Length of Cargo Bed, Fore and Aft of Fenders

FENDERS:
Fabricated 1/8" Steel Diamond Tread Plate Fenders
Integrated Construction with Catwalks

TOOLBOX:
Toolbox Dimensions:  14"H x 13"D x 78" Contoured to A Frame
Fabricated 1/8" Smooth Steel Interlarded Construction
Lift-Up Lid with Security Hasp for Padlock

Misc:
(4) Four-10,000 lb Dropleg Jacks all Four Corners
Wheel Chock Holders and Wheel Chocks
Grounding Lug
Receiver Tube for Slide In Hitch Mount and Rear of Trailer
(5) Five - D-Rings Along Rear Butt Tube

12 VOLT WIRING SYSTEM:
ICC & DOT Approved Lights
Sealed Beam Rubber Mounted Stop, Turn, Tail & Marker Lights
S.O. Cable Wiring Loom, Clamped on 16" Centers with Rubber Lined Clamps
Wiring Loom Terminated in Junction Boxes
Connections Soldered & Sealed with Heat Shrink Tubing
32" Pigtail w/6-Way Aluminum Die Cast Plug, Terminated at Junction Box
Breakaway Kit with Sealed Lead Acid Battery & Trickle Charger
