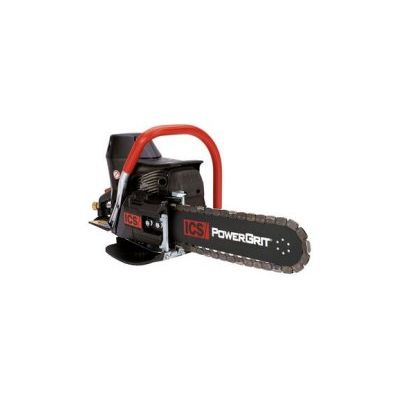

Model 680ES-PG - Petrol Powered Utility Chain Saw
From PowerGrit Utility Saws & Chains
Built to provide a combination of performance and portability for cutting in-ground utility pipe, the 680ES-PG petrol powered utility chain saw with PowerGrit chain will change the way to cut pipe. This affordably priced petrol powered saw, allows you to cut up to 10' deep from one side into ductile iron, cast iron, PVC, HDPE and Insituform lining and is also designed to run the full line of MAX series chains. With a quick switch of guidebar, chain and drive sprocket, you have the ability to use this saw in masonry, stone and even reinforced concrete. Making it the most cost effective, versatile tool in your arsenal.
-
Most popular related searches
Features & Benefits
- Polyester air filter designed specifically for wet cutting
- Operates PowerGrit® Utility saw chain
- Multifunction lever controls choke, throttle advance, run and stop modes
- Extended drive sprocket adapter offers easy chain assembly
- Deep cutting solution for obstructed or small openings
- Easy-to-start in all weather
Technical Data
- Engine Type 2-stroke, Air Cooled
- Displacement 76.5 cc (4.7 cu-in)
- Horsepower 3.7 kW (5 hp) @ 9,500 rpm
- Torque 4.1 Nm (36.3 in-lbs) @ 6,500 rpm
- Engine Speed 11500 +/- 500 rpm (max) / 2,800 - 3,200 rpm (Idle)
- Chain Speed at Maximum Power 34.5 m/s (6800 ft /min)
- Weight 9.5 kg (21 lbs) powerhead only
- Dimensions 46 cm (18 in) length / 29 cm (11.5 in) height / 25 cm (10 in) width
- Starter Dust and water resistant
- Ignition Special water resistant electronic ignition
- Fuel ratio 4% (25:1) gasoline-to-oil
- Fuel Capacity 0.88 liter (0.23 gallon)
- Water Supply Requirement Minimum: 1.5 bar (20 psi)
- Water Flow Requirement Minimum: 4 lpm (1 gpm)
- Guaranteed Sound Power Level, Lwa (1) 117 dB(A) (Kwa=3.0 dB(A))
- Equivalent Sound Pressure at the Operator's Ear Lwa 101.0 dB(A) (K = 2.0 dB(A))
- Vibration, ahv eq Concrete Cutting (2) 7.2 m/s2 (K=1.0 m/s2) Front Handle/8.5 m/s2 (K=1.0 m/s2) Rear Handle
