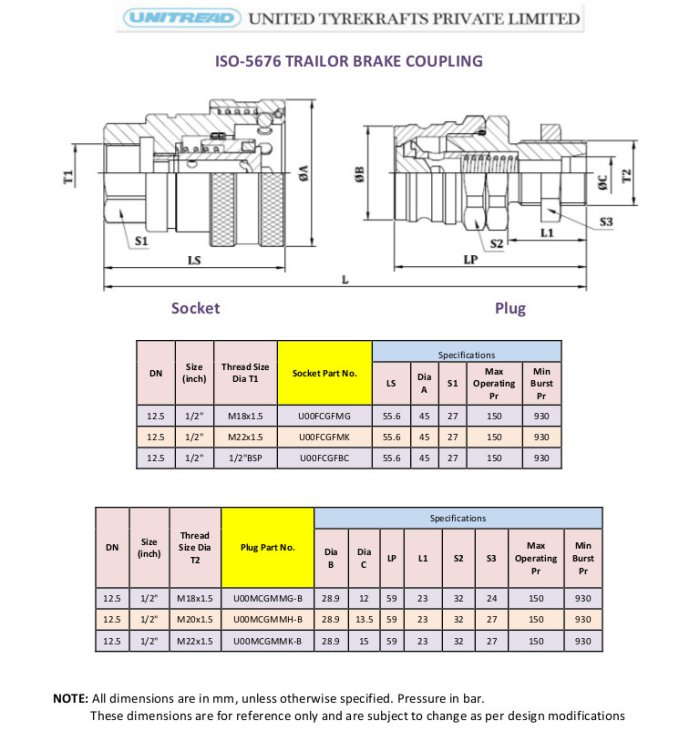

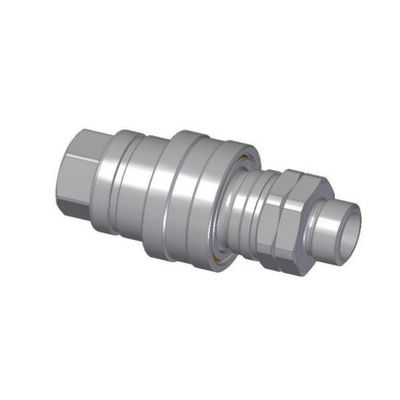

Model ISO-5676 -Trailer Brake Coupling

SHARE

The brake line coupling was developed for utilisation in hydraulic brake systems. The locking of the halves of the coupling is carried out with precision spheres. The design of the flat valves guarantees absolute tightness, minimal oil loss and the avoidance of air becoming trapped during coupling. The design of the coupling is in accordance with ISO 5676.

Most popular related searches
agriculture coupling
agriculture lining

Design as per ISO 5676 Standard Trailer break female half with female BSP/Metric end connection

Surface Treatment : Zinc Plating CR III
Materials : Body Carbon Steel, Stainless Steel
Seal : Nitrile (NBR)
Part No. : U00FCGFMGSL, U00FCGFMKSL,U00FCGFBC

Design as per ISO 5676 Standard Trailer break male half with male BSP/Metric end connection, having 150 Bar working pressure

Surface Treatment : Zinc Plating CR III
Materials : Body Carbon Steel, Stainless Steel
Seal : Nitrile (NBR)
Part No.: U00MCGMMGSL, U00MCGMMHSS, U00MCGMMKSS, U00MCGMBC, U00MCGMMGBL, U00MCGMMHBS,U00MCGMMKBS
